SNSEK-SSQ30 Veterinary Surgical Basic Orthopedic Device System

Main Performance Parameters

Specifications

Rotational Speed or Frequency of Electric Saw/Drill at No-Load

Rotational Speed of Various Main Units

0-23000 rpm

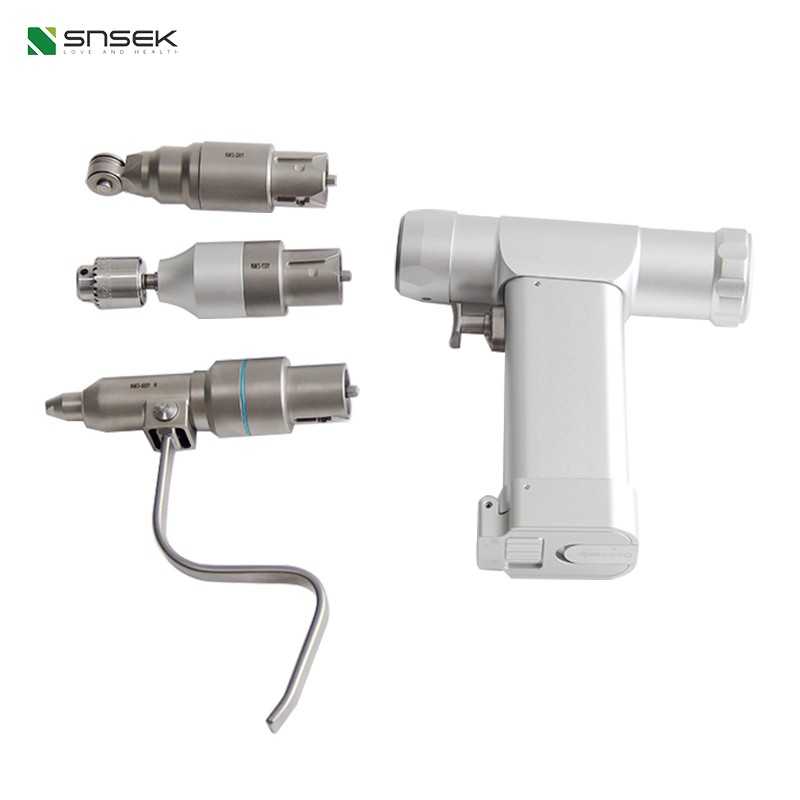

Rotational Speed of Bone Drill Adapter, Small AO Drill Adapter, Kirschner Wire Drill Adapter, Hollow Drill Adapter

0-1200 rpm

Rotational Speed of Skull Drill Adapter

0-800 rpm

Rotational Speed of Acetabular Drill Adapter, Torque Drill Adapter

0-300 rpm

Rotational Speed of Various Saw Adapters

0-18000 rpm

Rotational Speed of Skull Milling Adapter

0-36000 rpm

Surface Temperature

≤50°C (after 5 minutes of no-load operation)

No-Load Noise

≤75 dB(A) (for electric saw/drill at no-load)

Blade of Electric Saw/Drill

Should be heat-treated, hardness ≥HRC30

Clamped Tool

Shall not be pulled out when subjected to an axial tensile force of 10N

Output Torque of Equipment

≥0.8N·m
