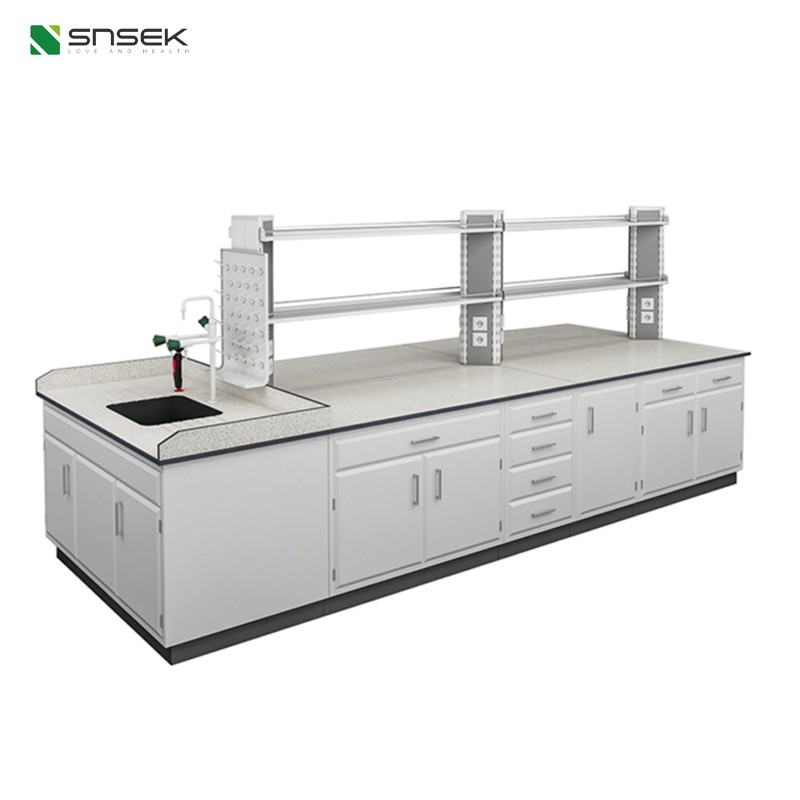

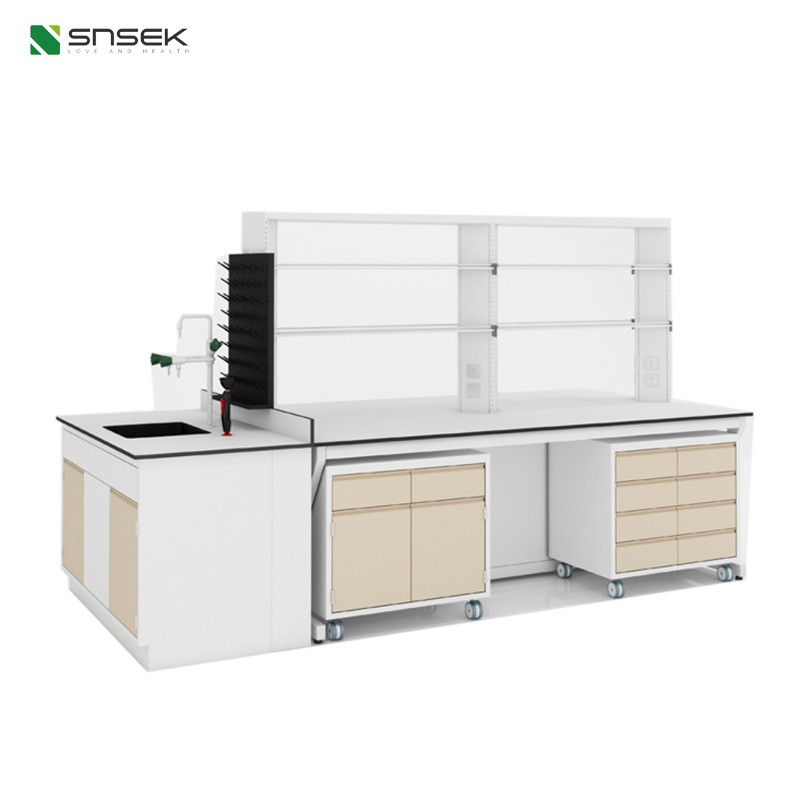

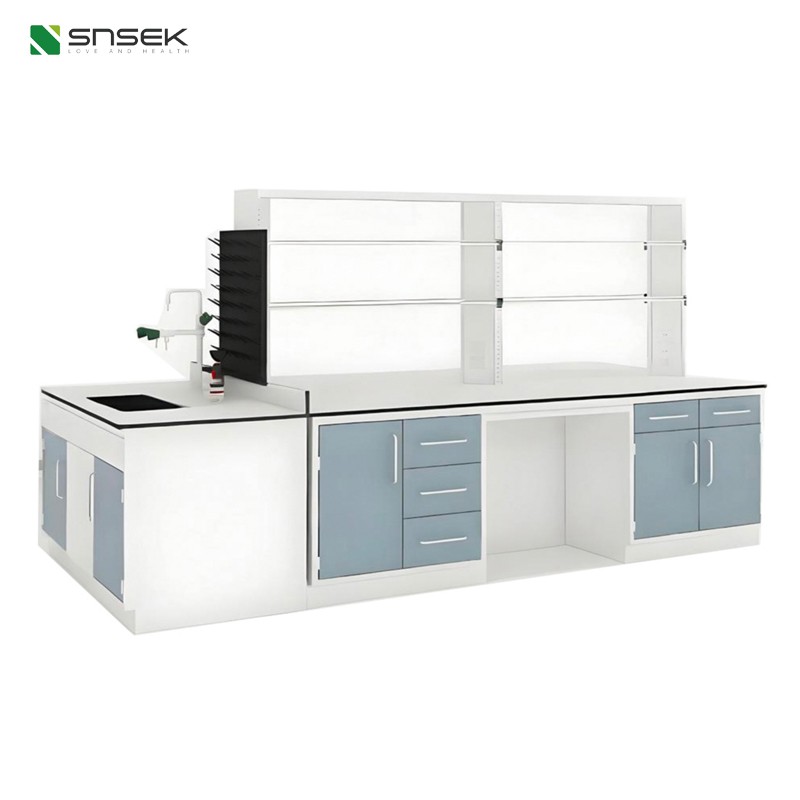

Snsek-CBR100Laboratory Furniture Central Bench with Reagent Shelf

Product Parameters

Specification

Specifications (L×W×H)

L×1500×850mm (Base specification, customizable)

Material

1.0mm or 1.2mm thick Angang cold-rolled steel plate

Optional Table Top Materials

Resin chemical-resistant panel, Ceramic plate, Marble, Epoxy resin, Stainless steel, Tempered glass

Processing Technology

Steel frame side panels: hot melt drilling, tapping, then bolted connection. Cabinet body: CNC laser cutting, CNC bending machine one-piece bending, laser full welding, surface finished with automatic epoxy spraying process and high-temperature curing

Cabinet Accessories

Slides: Three-section silent slide, damping slide, steel slide. Handles: 128 stainless steel C-type handle, concealed one-piece formed handle, 2.5mm concealed aluminum alloy handle. Hinges: 2mm 304 stainless steel hinge, concealed damping hinge. Leveling Feet: 2.5mm thick steel plate stamped, with M10 hexagonal galvanized screw rod

Reagent Rack

Specifications: L×400×850mm. Types: Standard reagent rack, triangular column reagent rack, square column reagent rack, etc. Material: Shelves are steel or 10mm tempered glass, height adjustable, includes steel base tray, stainless steel guardrail, and steel wire trough

Color

Customizable according to customer requirements
