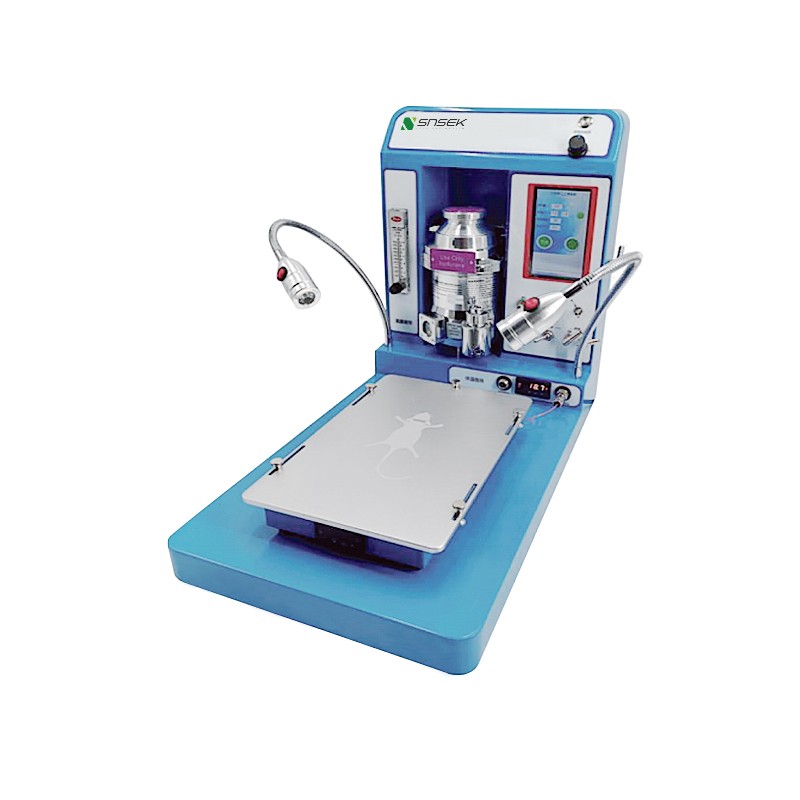

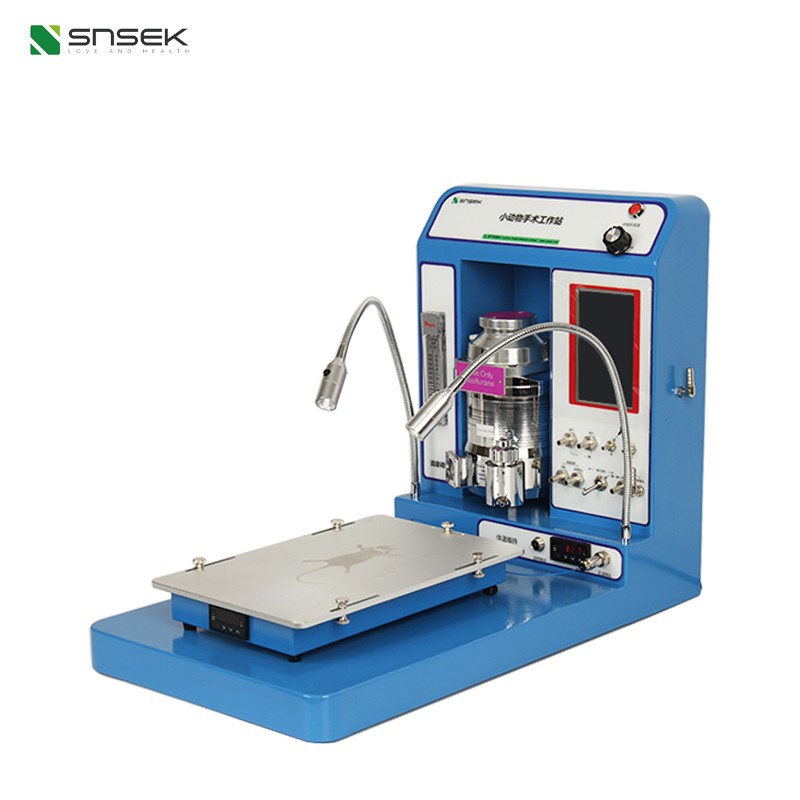

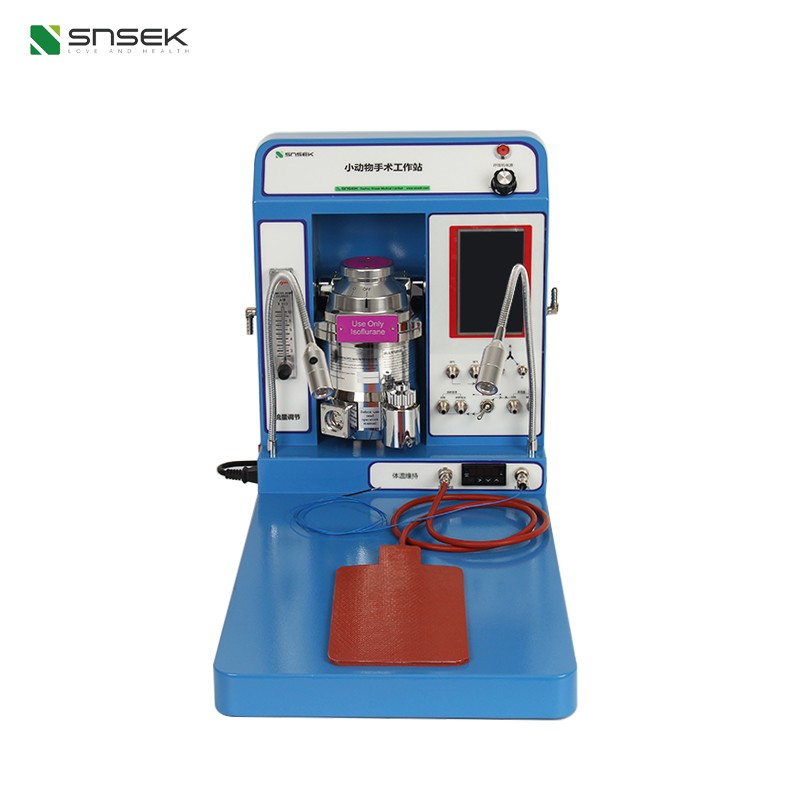

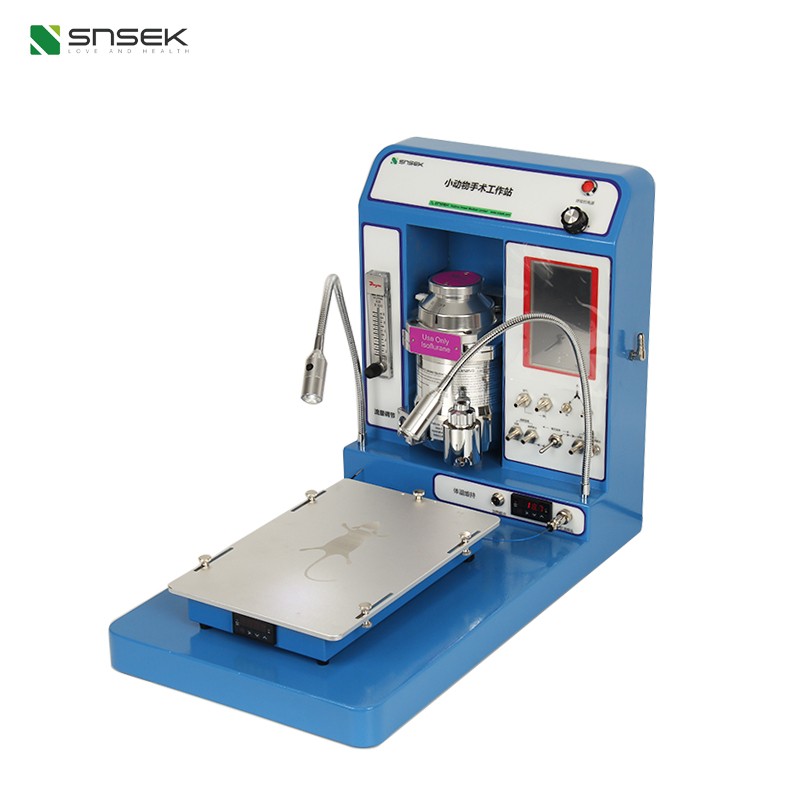

Snsek-MZS10U Small Animal Surgical Station

Parameter

Description

Gas flow adjustment range

0~500ml

Anaesthetic output concentration

The 0.5% to 5% are adjustable

Anesthesia gas filtration method

Activated carbon, negative pressure gas recovery system

Ventilator screen size

5-Inch touch screen

Respiratory rate adjustment range

1-200 times / min

Tidal volume adjustment range

0.5-10ml

Inspiratory-expiratory ratio adjustment

1:5~5:1

Respiratory pressure wave display

have

Airway pressure

Automatic pressure relief protection beyond 6 Kpa

Number of cold light sources

2 independent switch stepless adjustable

Anal temperature display accuracy

0.1°

Anal temperature probe specifications

1.5mm diameter round head

Thermostatic operating table size

300*200*40mm

Temperature control range

Room temperature ~45℃

Temperature control accuracy

0.1℃

Temperature control method

PID

Table material

Aluminum alloy thickness is 6 mm

Device dimensions

550*430*310mm

Power supply and power

220v <40W
