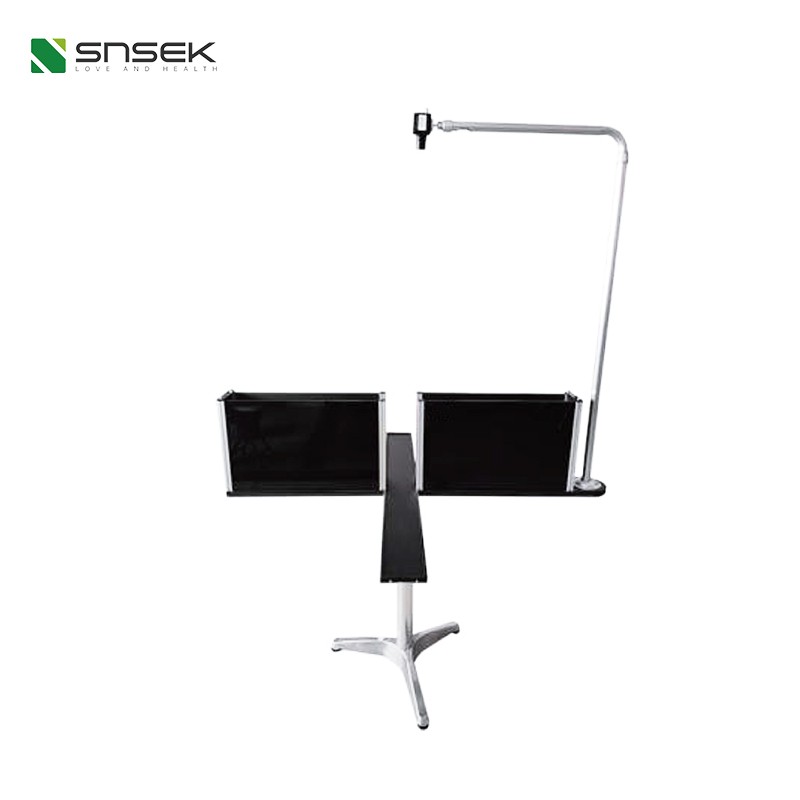

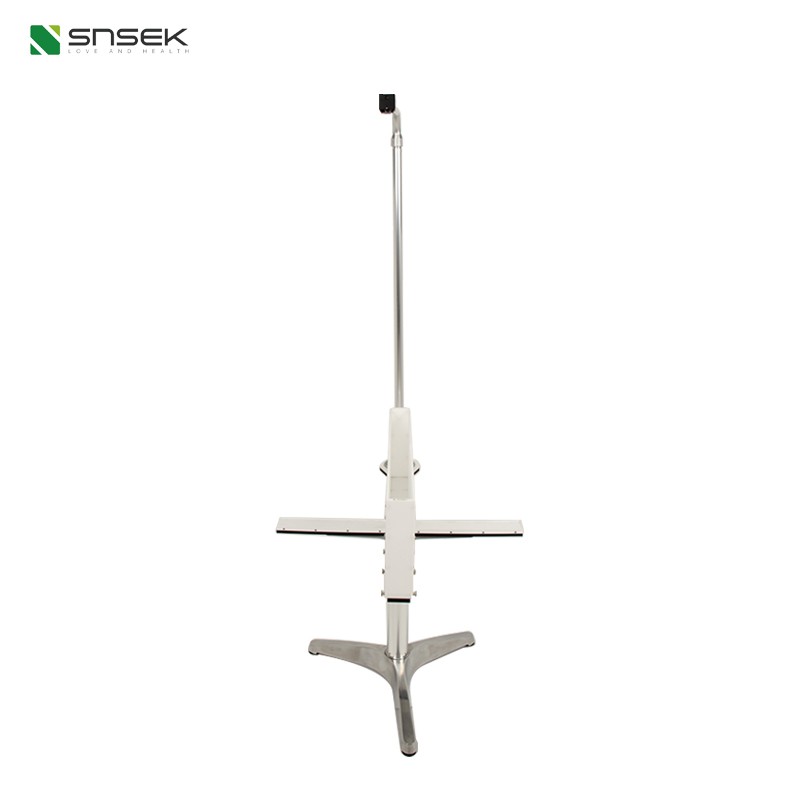

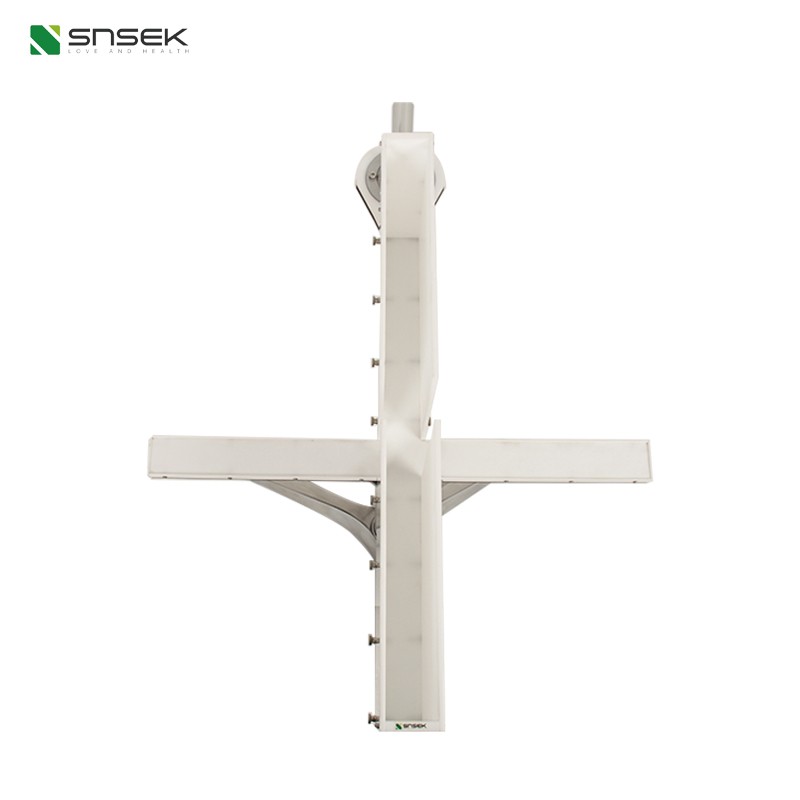

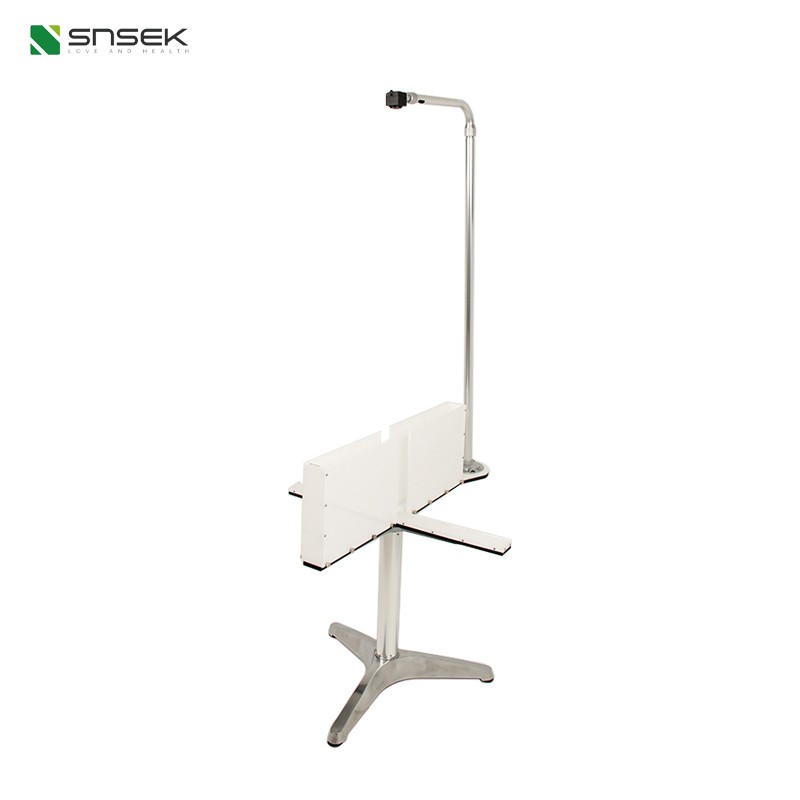

Snsek-SA-CMT Elevated plus maze system

Category

Specification

Analysis Metrics

Experiment Name, Animal Name, Trajectory, DateTime
Per Arm: Total Distance (mm), Total Time (s), Avg Speed (mm/s)
Resting Time (s), Distance (mm), Duration (s)
Avg Speed (mm/s), Entry Count, Latency (s)

Rat Arm Dimensions

425L × 120W × 250H mm
Elevation: 700 mm

Mouse Arm Dimensions

300L × 60W × 200H mm
Elevation: 500 mm

Construction

Aluminum/Stainless Steel + Black/Transparent Acrylic
Wheels & Protective Railings

Camera System

• Resolution: 1080P (1600 TV Lines)
• Color: PAL System
• Sensitivity: <0.005 Lux
• Interface: Driver/Card-Free

Video Output

Formats: AVI/MPEG-1
Resolution: 640×480 pixels
Frame Rate: 1-25 fps

Data Visualization

Exportable Tables, Trajectory Maps, Heat Maps
