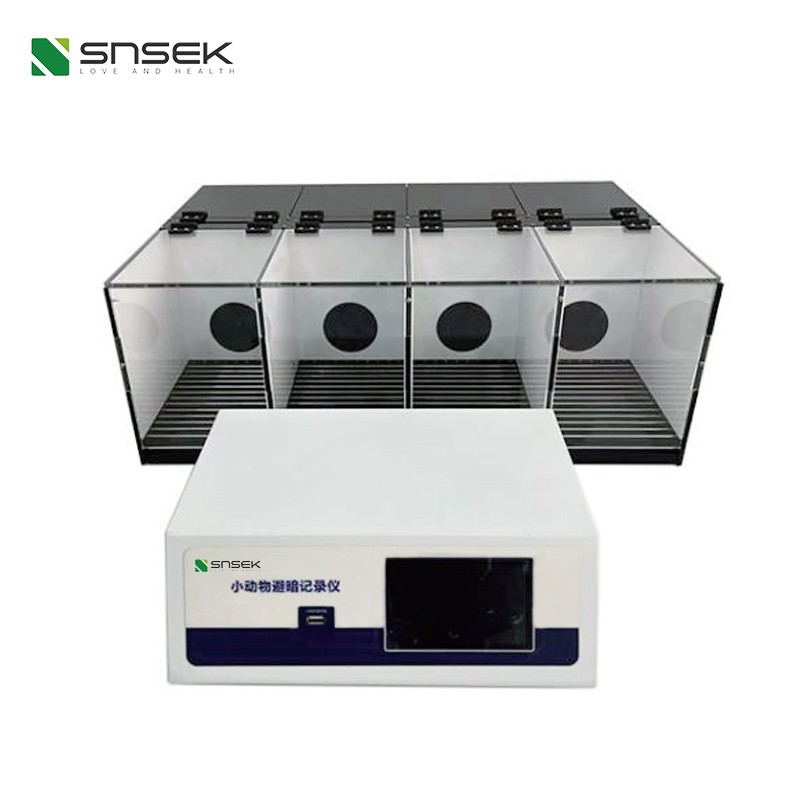

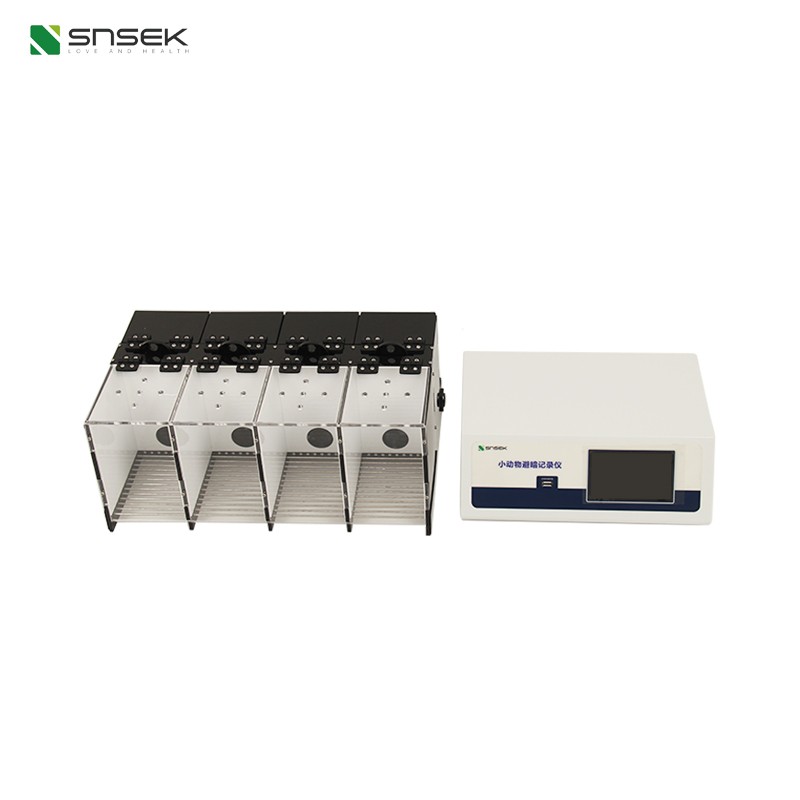

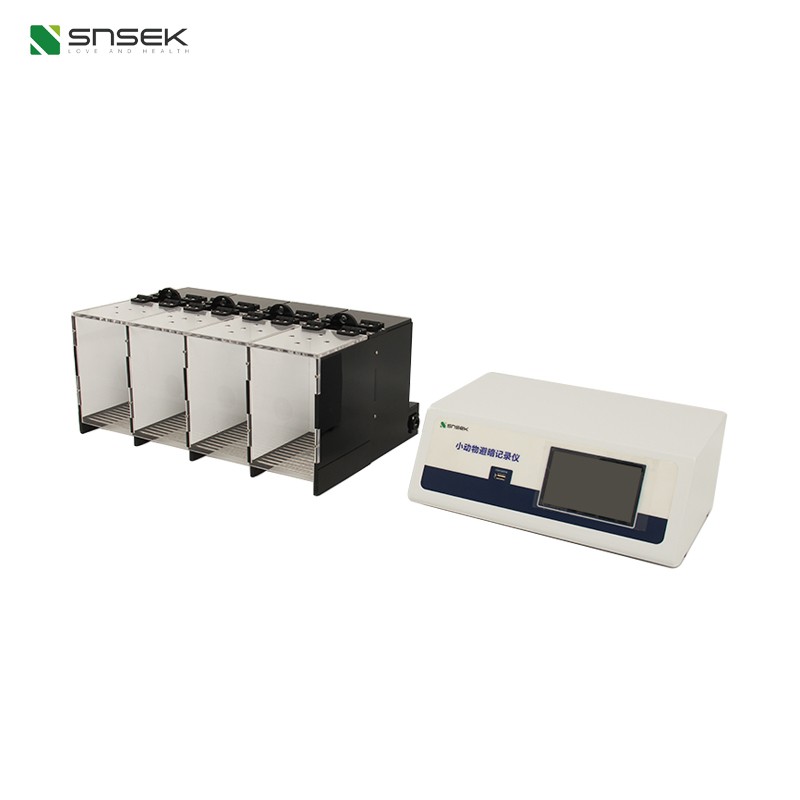

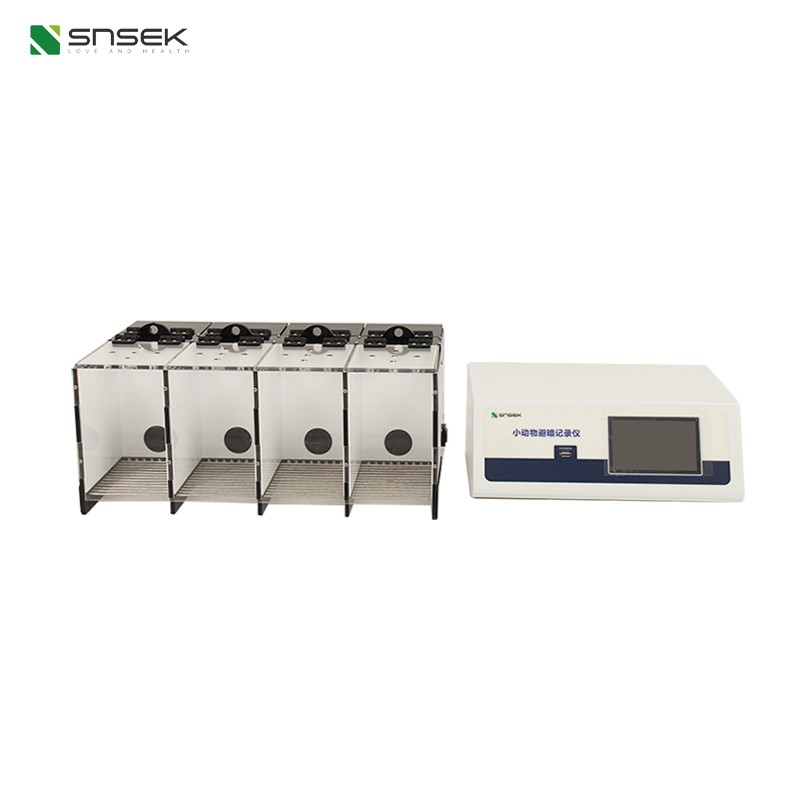

Snsek-SA-EDT B-type multi-channel dark recorder

Product ItemSnsek-SA-EDT B-type multi-channel dark recorder
CategoryBehavioral Products

Brand: Penncentury SNSEK

Model: Snsek-SA-EDT

The mouse dark avoidance instrument is one of the instruments for studying learning, memory and its drugs. It detects the passive escape reaction of mice and is used for studying learning and memory functions. The instrument uses a 5-inch touch screen, and parameter settings/data recording are all operated on the screen, which conforms to the current operating habits of electronic products. The instrument can be grouped and saved, and can be easily exported to a USB flash drive for data statistics.

Parameter	Specification
Recording Duration	Min: 1 sec │ Max: 120 min
Data Capacity	60 experiment groups │ 999 trials/chamber
Recorded Metrics	Stimulation Delay, Countdown, Latency, Error Count
Channel Control	8 independent channels (start/stop per channel)
Timing Precision	0.01 sec
Clock Settings	Year, Month, Day, Hour, Minute, Second
Channel Configuration	Customizable for Channels 1–8
Stimulation Current	0.1–5.0 mA (adjustable in 0.1 mA steps, per channel)
Power Supply	AC 200–230 V, 50 Hz │ Power Consumption: 30 W
Operating Temperature	0–40°C
Data Export	USB interface
Compatible Dark Boxes	Mouse: 8-chamber (80×120×240 mm/chamber) Rat: 8-chamber (120×160×340 mm/chamber)
