  • Snsek-SA-JPT T-type multi-channel jump platform recorder

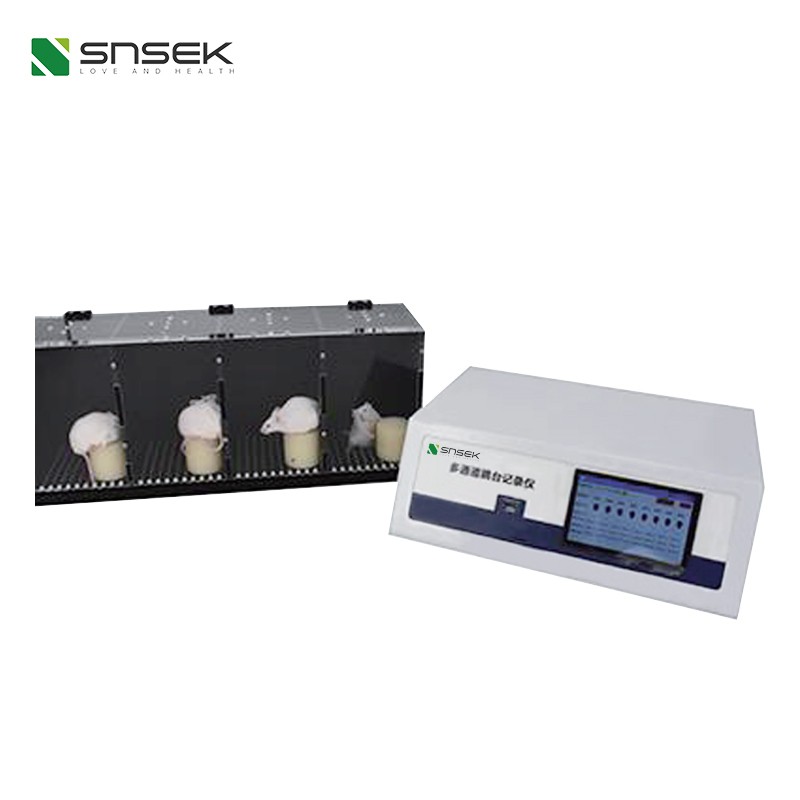

Snsek-SA-JPT T-type multi-channel jump platform recorder

Brand: Penncentury SNSEK


Model:Snsek-SA-JPT


The basis of learning and memory experimental methods is conditioned reflex, and various methods are derived from it. The platform jumping method is one of the more commonly used methods. The advantages of this method are that it is simple and easy to operate. Multiple animals can be tested at the same time, and the effects of drugs on memory and learning can be observed. It has high sensitivity and is particularly suitable for initial screening of drugs. The platform jumping recorder has the characteristics of liquid crystal display, convenient setting, accurate counting, intuitive image, compact structure, convenient maintenance, and safe use. It is suitable for scientific research and teaching use. It is an indispensable tool for screening, developing and researching various intelligence-enhancing, memory-enhancing, anti-aging drugs and health products. The instrument uses a microcomputer control to have the ability to judge the behavior of animals stepping down from the platform. The test time can be set to record the latency and number of steps down from the platform.


Parameter

Specification

Timing

Max Auto-Record: 120 min 00 sec
Min Auto-Record: 1 sec
Timing Precision: 0.01 sec

Data Capacity

Max Experiment Groups: 60
Max Trials/Chamber: 999,999

Recorded Metrics

Countdown • Latency • Error Count

Channel Control

Independent Start/Stop: 8 channels
Custom Configuration: Channels 1–8

Stimulation

Current Range: 0.1–5.0 mA (adjustable in 0.1 mA steps per channel)

Power

Input: AC 200–230 V, 50 Hz
Consumption: 30 W

Environment

Operating Temp: 0–40°C

Data Management

Export: USB

Compatibility

Mouse Box: 8-chamber (110×110×160 mm/chamber)
Rat Box: 8-chamber (200×200×290 mm/chamber)

Clock Settings

Year, Month, Day, Hour, Minute, Second
