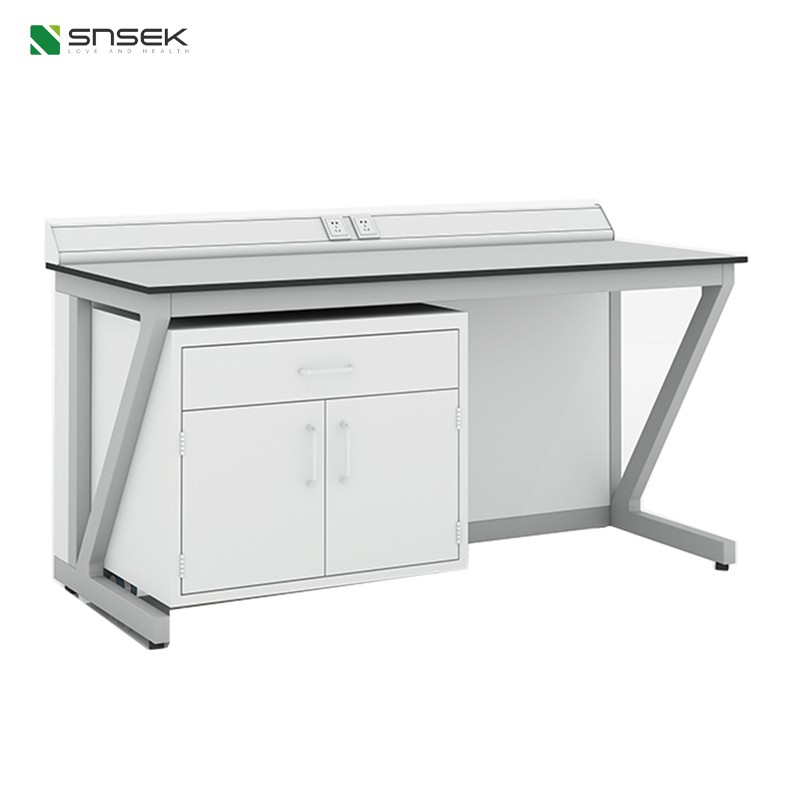

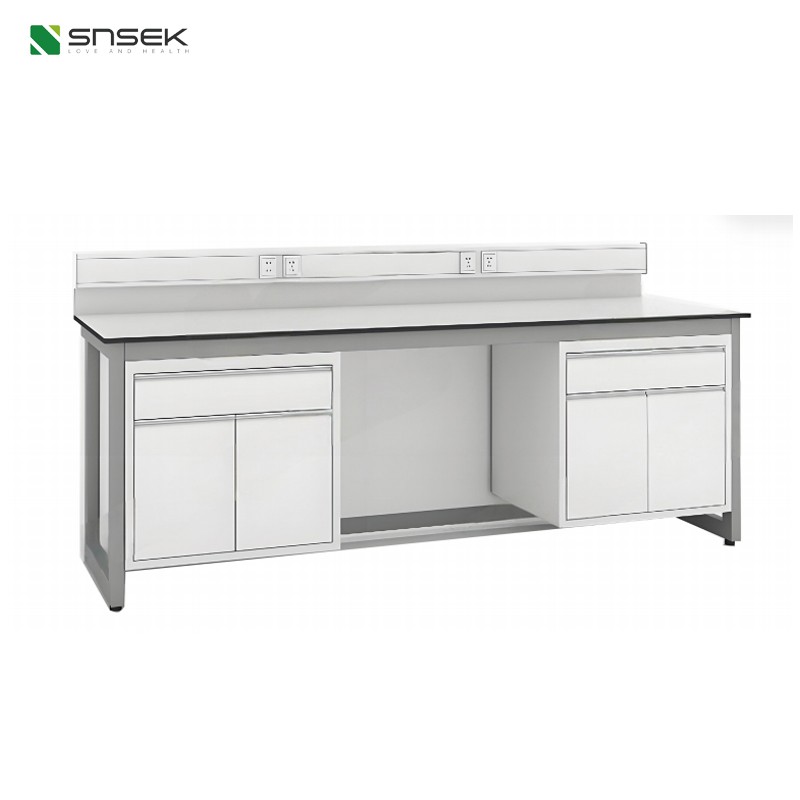

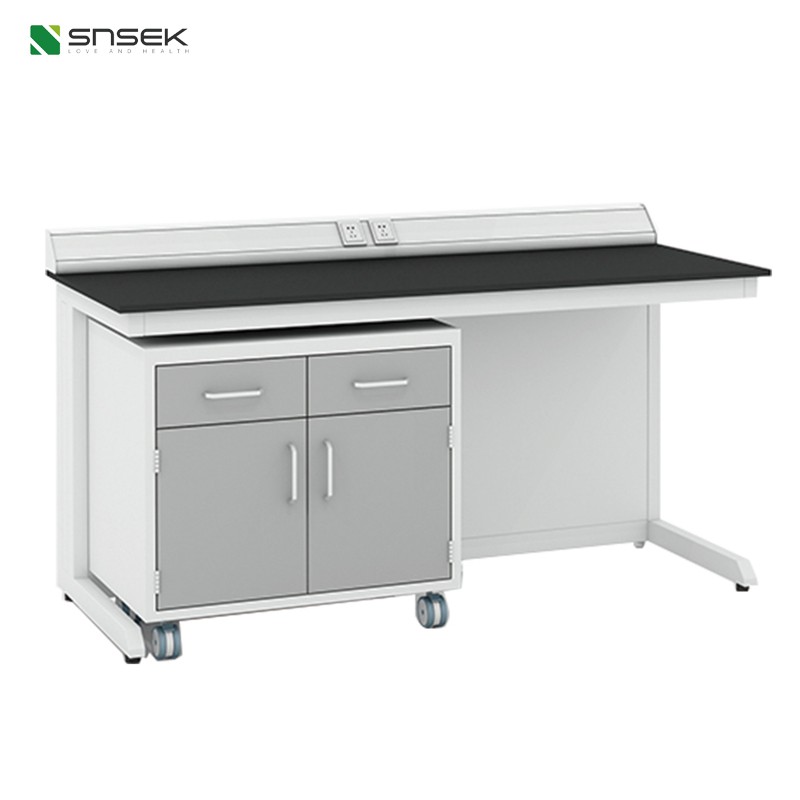

Snsek-SH100 Laboratory Furniture-Steel Frame &Hanging Cabinets

Parameter Item

Details

Specification L*W*H

L*750*850mm / Customizable

Material

Steel frame: 40*60*1.5mm high-quality square tube; Cabinet body: 1.0mm or 1.2mm thick Angang cold-rolled steel plate

Worktop

理化板 (Resin chemical board), Ceramic board, Marble, Epoxy resin, Stainless steel

Processing Technology

Steel frame side panels: hot-melt drilling, tapping, bolted connection; Cabinet body: CNC laser cutting, CNC bending machine one-time integrated bending forming, laser full-welding process, surface fully automatic epoxy spraying process with high-temperature curing

Cabinet Body (4 configuration categories)

Slides: Three-section silent guide rails, damping guide rails, steel guide rails
Handles: 128 stainless steel C-shaped handle, concealed integrated forming handle, 2.5mm concealed aluminum alloy handle
Hinges: 2mm 304 stainless steel hinge, concealed damping hinge
Steel frame leveling feet: High-density polyethylene, base Φ36mm

Color

Customizable according to customer requirements
