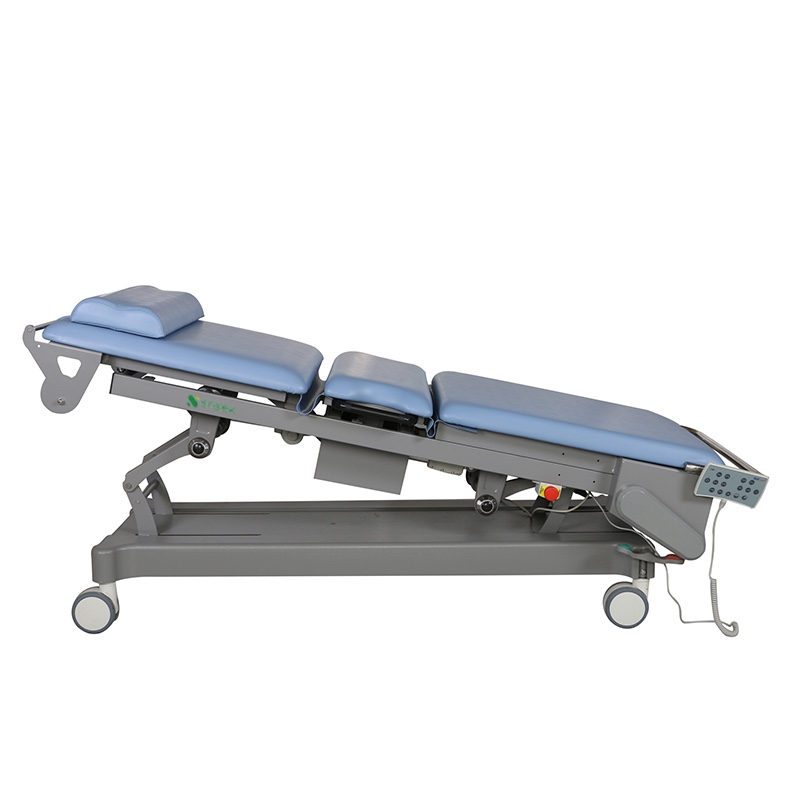

Snsek-SJC7005 Electric Ultrasound Scanning Table With Adjustment Bottom Position - Image 1

Snsek-SJC7005 Electric Ultrasound Scanning Table With Adjustment Bottom Position - Image 2

Snsek-SJC7005 Electric Ultrasound Scanning Table With Adjustment Bottom Position

Product ItemSnsek-SJC7005
CategoryHospital Exam Table
SJC7005SJC7005
2100*770*620-900 mm2100*770*620-900 mm
250 kg250 kg
ISO/CEISO/CE

Main Feature

Design for body checking , examination assistant equipment according to the principle of ergonomics
With considerate desion to make sure the disable patient comfortable when inspection proce, and enable the doctor to inspect the patient in anyconvenient direction
Hand control is equipped with the ease of doctors to operate
2inchescastor with brake, flexible and silence movement with wearing quality
Bed frame , bed base are made of high quality stee, electrostatic painting enhance the elegant looking and corrosion resistance: Mattresses are madeof high quality leather, bright luster and smooth texture
Adopt the 6 motors control system which is reliable and durable.
Equipped with disposable medical roll sheet, easy to operate the sheet replacement
With auto-chanaina sheet and automatic deviation correction function, make heaith problem more satety during the examination
This internal battery of electric system will turn on automatically when the power supply off

Specification

Overall size	2100770620-900 mm
Backrest lifting angle	0-70°±5°
Bottom position up and down movement	0-100mm
Bed surface forward and backward movement	0-300mm± 10mm
Trendelenburg and Rev Trendelenburg angle	≥12°
Whole Bed Highest Limit Position	900± 10mm
Whole Bed Lowest Limit Position	620± 10mm
Dynamic lift capacity	170kg
Static lift capacity	250kg
N.W	145kg
G.W	185kg
