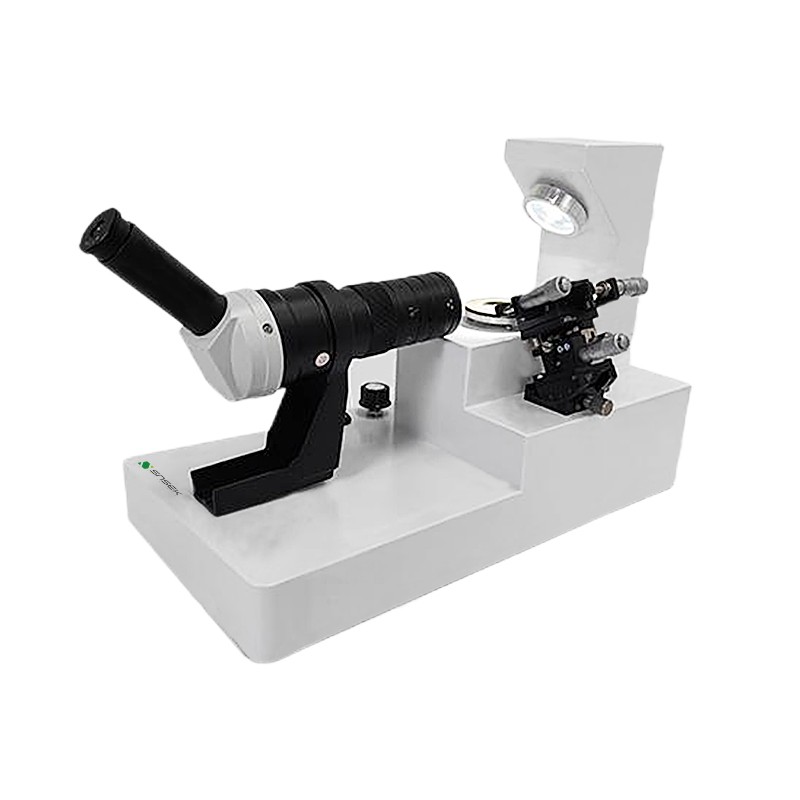

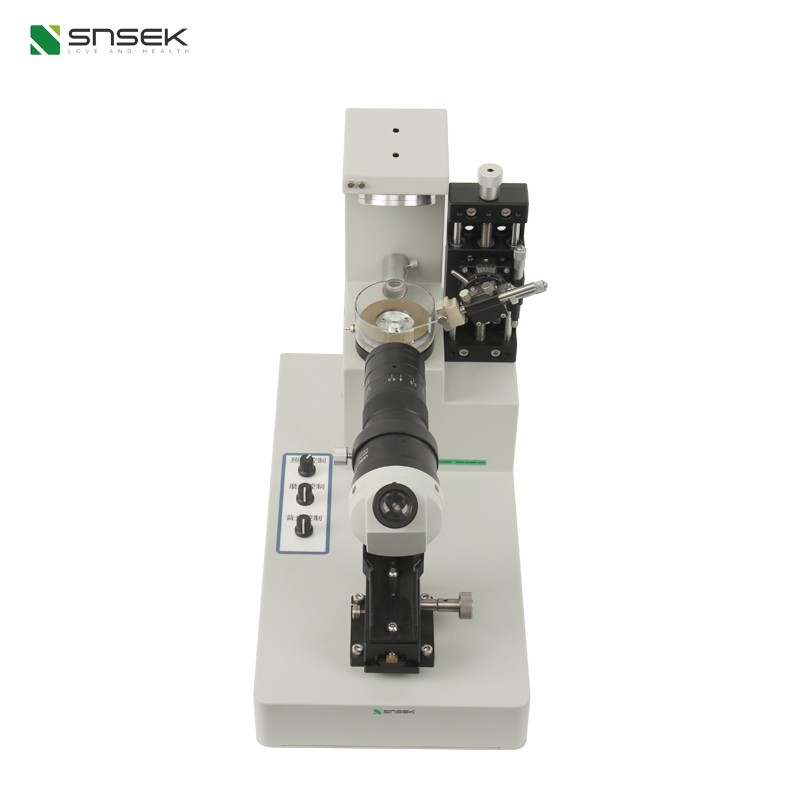

Snsek-SN-GMM35 Glass Microelectrode Grinding Instrument
- Product Item : Snsek-SN-GMM35 Glass Microelectrode Grinding Instr
- Category： Brain function modeling
Brand: Penncentury SNSEK
Model:Snsek-SN-GMM35
The glass microelectrode grinding instrument is mainly used for polishing and sharpening the glass electrodes drawn by the microelectrode pulling instrument. The tips of the newly drawn microelectrodes are not smooth and are rough, so they must be delicately polished and ground. They can be ground to an angle of 0~35 degrees.
|
Parameter |
Specification |
|
Grinding Wheel Diameter |
56 mm |
|
Grit Range |
6000–12000 (selectable) |
|
Speed Adjustment |
0–10,000 RPM (stepless) |
|
Grinding Angle |
0–35° |
|
Micromanipulator Precision |
0.01 mm |
|
Adjustment Range |
X/Y: 12 mm; Z: 10 mm |
|
Light Source |
LED cold light (stepless brightness adjustment) |
|
Microscope Magnification |
90× |
|
Dimensions |
390×200×310 mm (L×W×H) |
