  • Snsek-SN-GMS316 Glass microelectrode puller

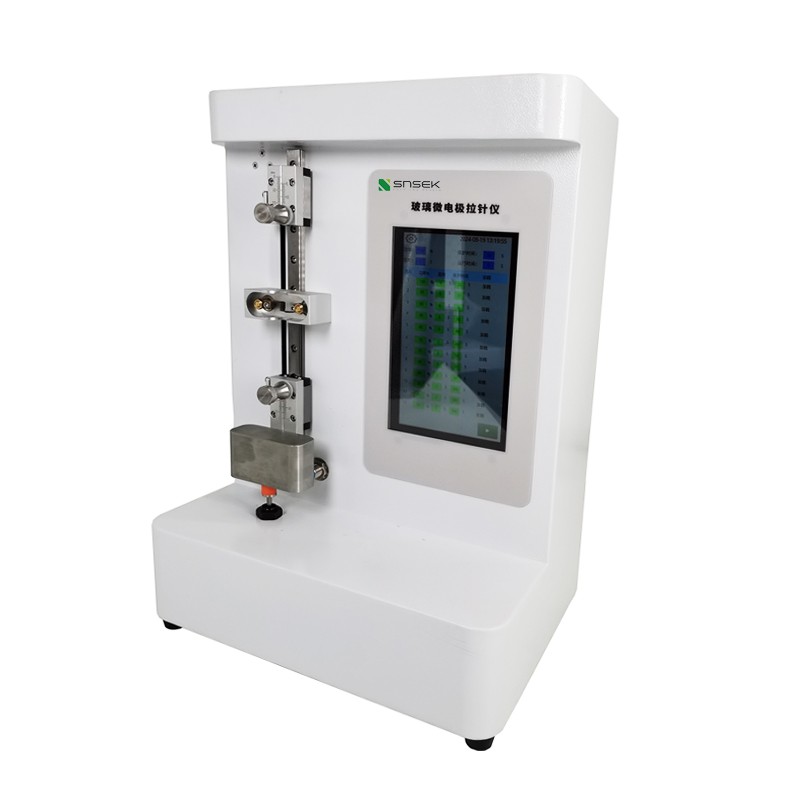

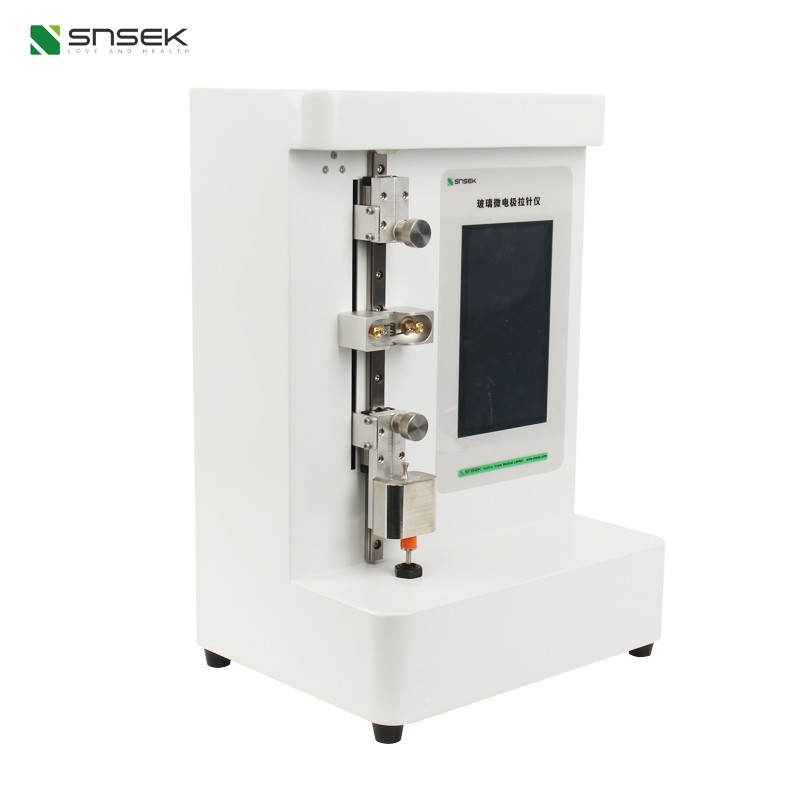

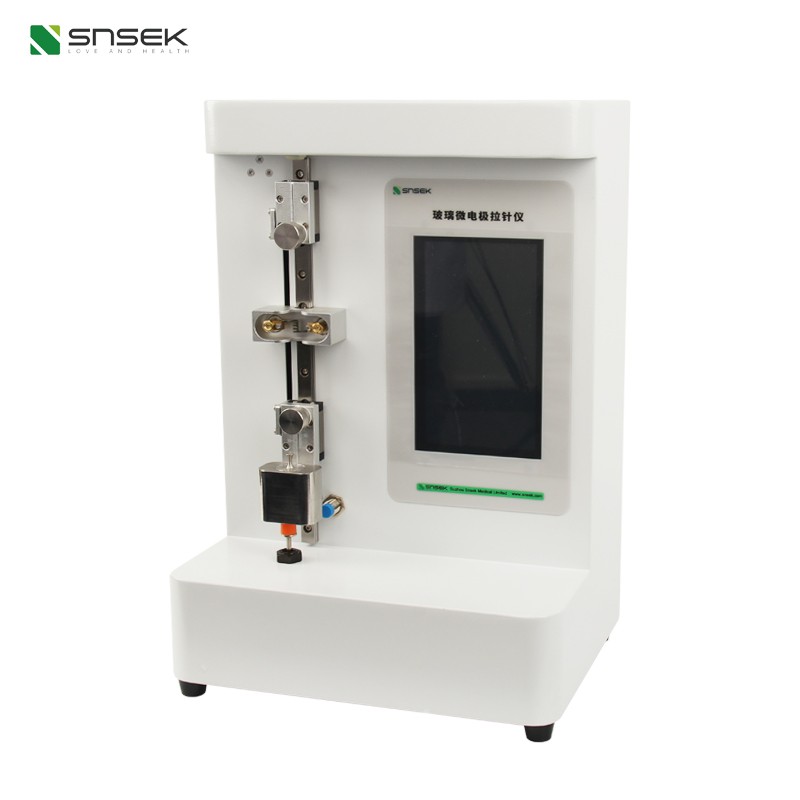

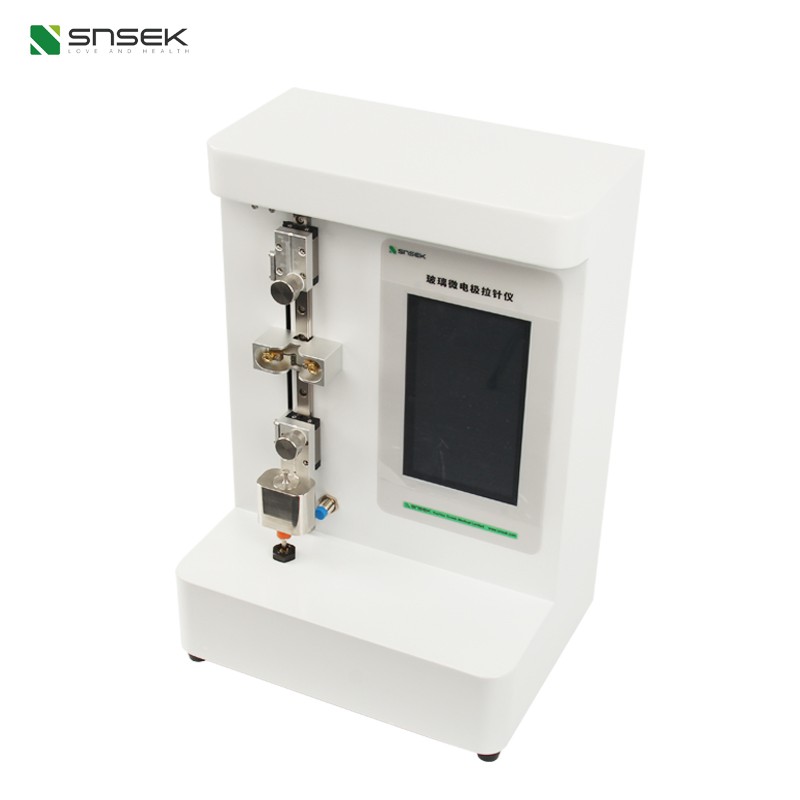

Snsek-SN-GMS316 Glass microelectrode puller

Brand: Penncentury SNSEK


Model:Snsek-SN-GMS316


The glass microelectrode puller is a domestically produced glass capillary puller with good performance. It is a common tool for pulling glass tubes into electrodes. Its basic principle is to place the glass tube in a heating wire and then control the temperature of the heating wire to burn the glass tube. While heating the glass tube, a certain pulling force is applied to both ends of the glass tube to pull the glass tube into various required electrodes. Commonly used glass microelectrodes are widely used in electrophysiology and cell injection experiments. Two microelectrodes can be obtained at the same time in one pulling. Different lengths and specifications can be obtained through corresponding program settings to meet applications in different fields.


Parameter

Specification

Pulling Method

Vertical Pulling

Tip Diameter

<0.3 μm

Pulling Length Range

3–16 mm

Screen

7-inch display

Power Adjustment

0.5–12 A (0.1 A step)

Preloaded Programs

12 presets + customizable

Electrode Diameter

1–2 mm

Symmetry

Produces 2 symmetric electrodes per pull

Dimensions

300×230×420 mm (L×W×H)

Power Supply

110–220V, 50/60 Hz
