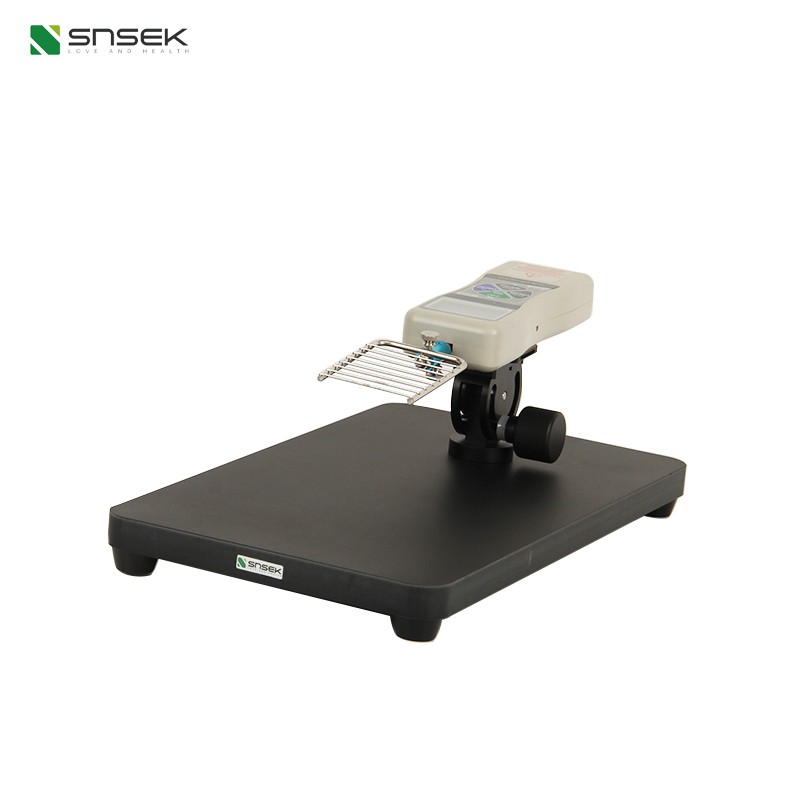

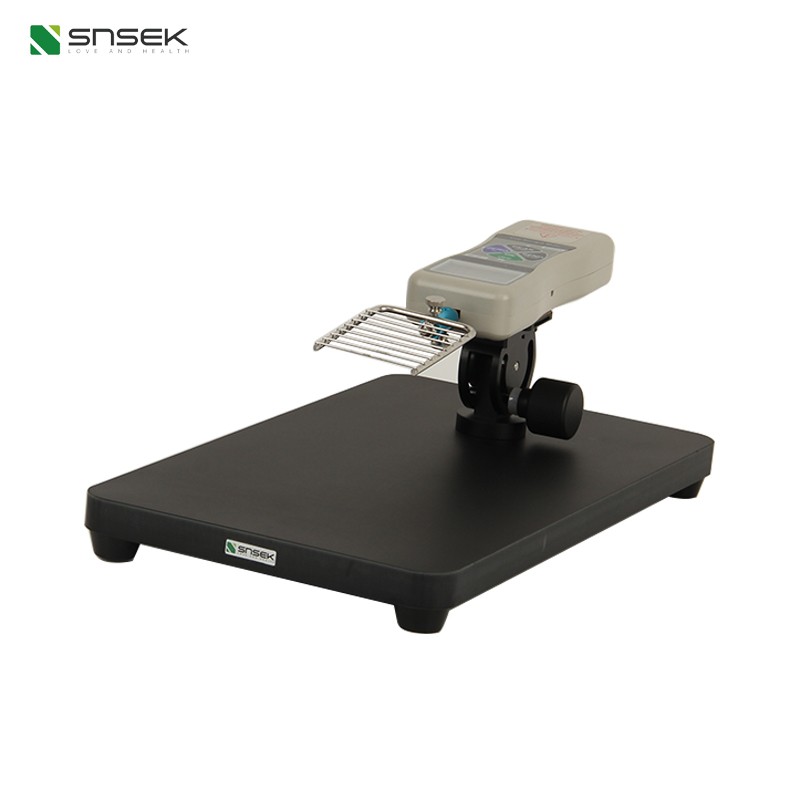

Snsek-SZ-SCG30 Mouse Grip Strength Tester

Parameters

Description

Maximum load (CAPACITY):

20N (2000 grams)

Device dimensions:

280X120X100mm

Mouse grip net dimensions:

92x54mm

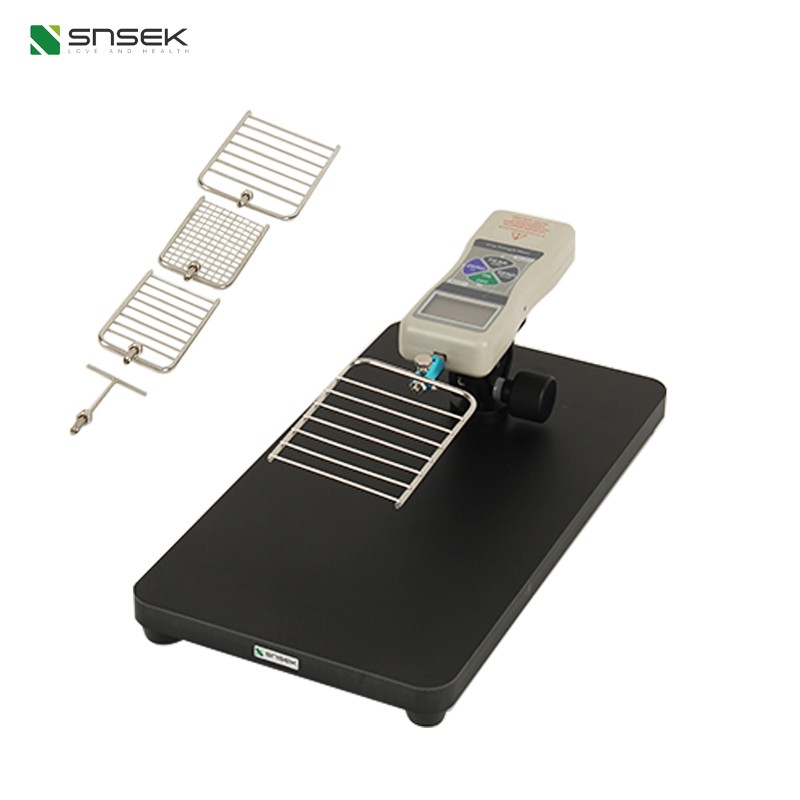

Rat grip net dimensions:

100X120 forelimb net (2 types), 100X200 for hindlimb net

Power input:

110~220V 50hz

Power output:

9V400mA

Instrument angle adjustment range:

-45~+45 degrees

Resolution

High precision, accuracy level 0.5, minimum reading up to 0.01N;

Maximum value hold function

Maximum value displayed until manually cleared;

Unit

N (Newton), g (gram), Ibf (pound) three options

Communication function

Can be connected to miniTR, the test data can be input into the computer through the data line to obtain the test curve, and can be exported for various detailed mechanical analysis

Software

The included software can export the data to excel or TXT file
