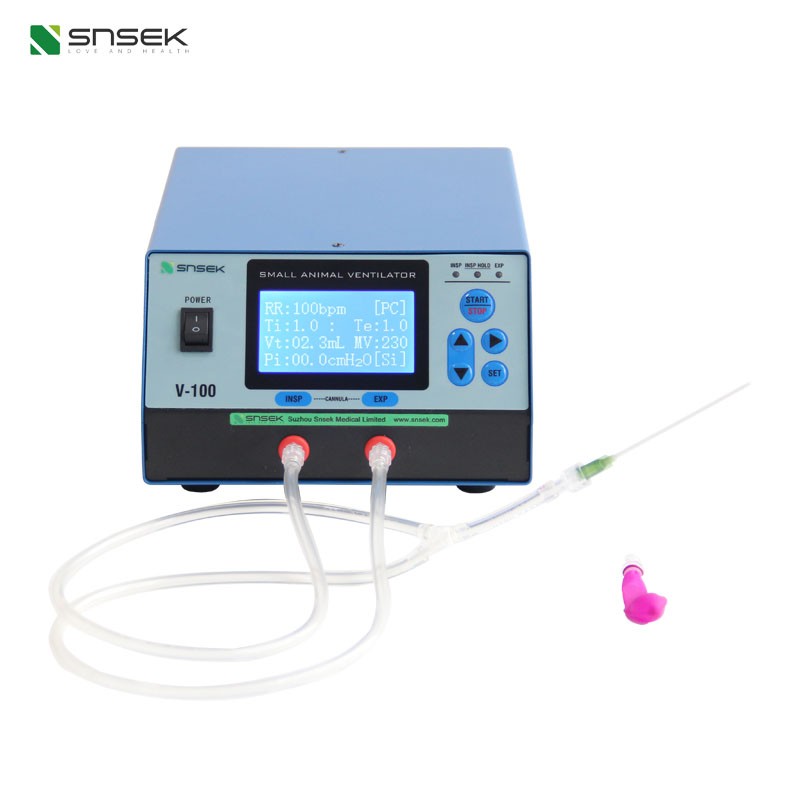

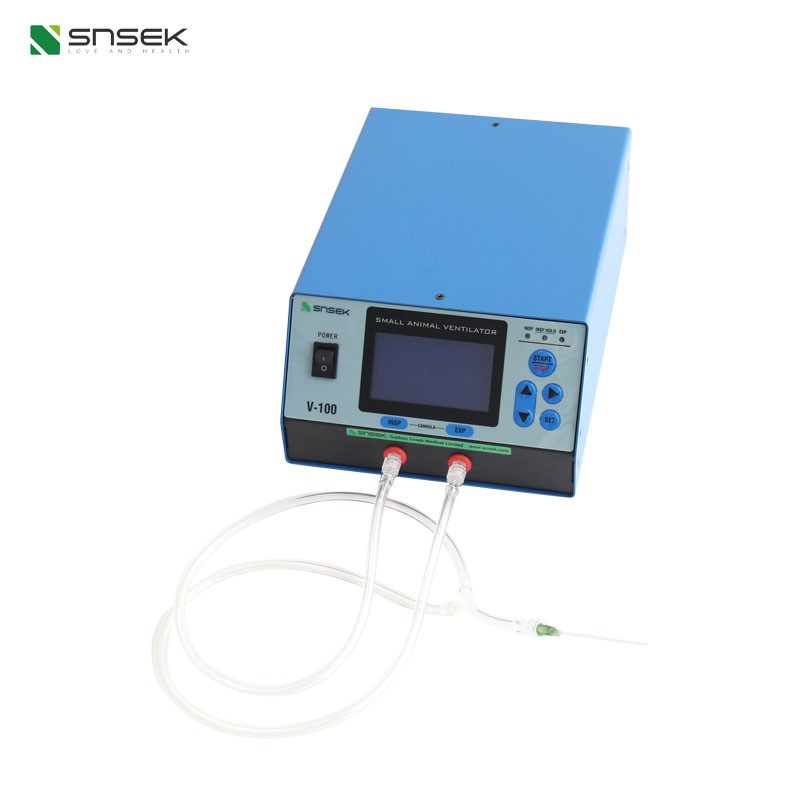

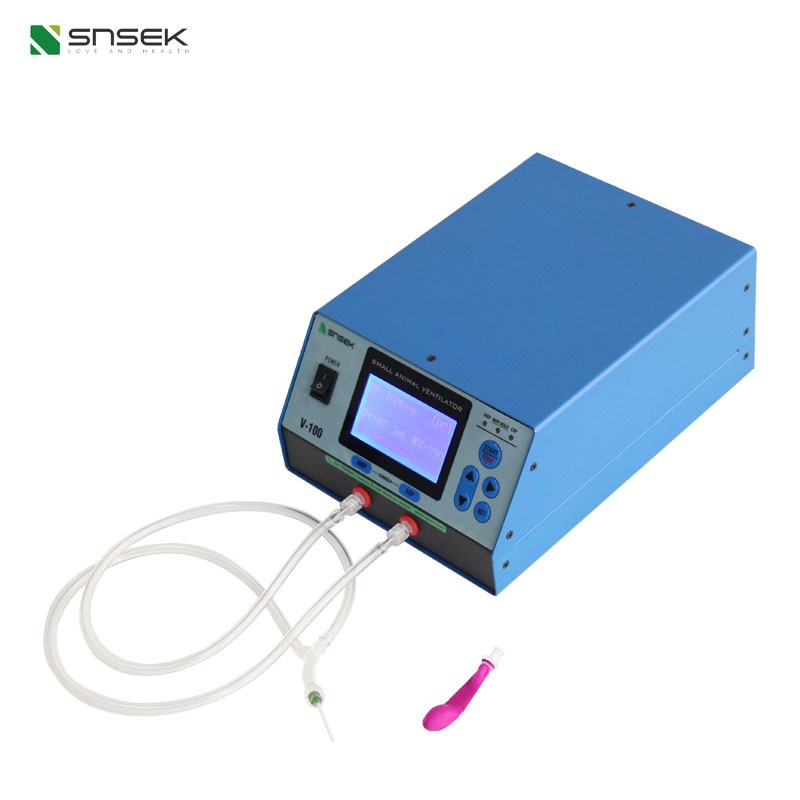

Snsek-SV100 Small animal ventilators: 0.1-10ml tidal volume - 副本

Parameter

Description

Instrument size

The 335x260x100mm all-aluminum alloy body

Respiratory rate adjustment range

1-200 times / min

Tidal volume regulation range

0.5-10ml

Inhalation-exhalation ratio adjustment

1:5~5:1

Airway pressure wave forms display range

7 Kpa

Automatic pressure relief protection

Airway pressure was above 6 Kpa

Ventilator interface specification

6mm diameter pagoda joint, made of stainless steel

Output gas volume calibration function

1~80cc

Display LCD brightness adjustment

adjustable

Parameter display and operation

A 5-inch touch LCD screen display

Screen resolution

854x480

Input voltage

AC 110~220V / 50Hz

Working environment temperature

0-50℃

Working environment relative humidity

<85%

scope of application

Suitable for mice, rats, guinea pigs and other animals

Endotracheal intubation

14G, 15G, 16G, 18G, 20G, 22G, 25G seven specifications
