Snsek-XG30 Vet Veterinary Digital X-ray System

Snsek-XG30 Vet Veterinary Digital X-ray System

Product Item : Snsek-XG30 Vet
Category： X-Ray Equipment
Output Power:32Kw 400mA
Tube:Chinese Tube
China portable flat panel detector
Large Size:15.6*15.6inches
INQUIRY EMAIL

Main specifications:

Tabletop size: 1400*720mm, + -50mm
SID: 1000mm+ - 50mm
Output: 32kw
Tube mA range: 10~400mA
Focus: lmm/2mm
Thermal capacity: 900KJ
Scintillator: CSL
lmaging area: 430*430mm
Scanning matrix: 3072*3072 pixelsPixel size:140 um
lmaging time
Intelligent adjustment of exposure
parameters, real-time.
Synchronization control with workstation?Real-time radiograph display;
Display 15.6 inch IPS CTP sensor

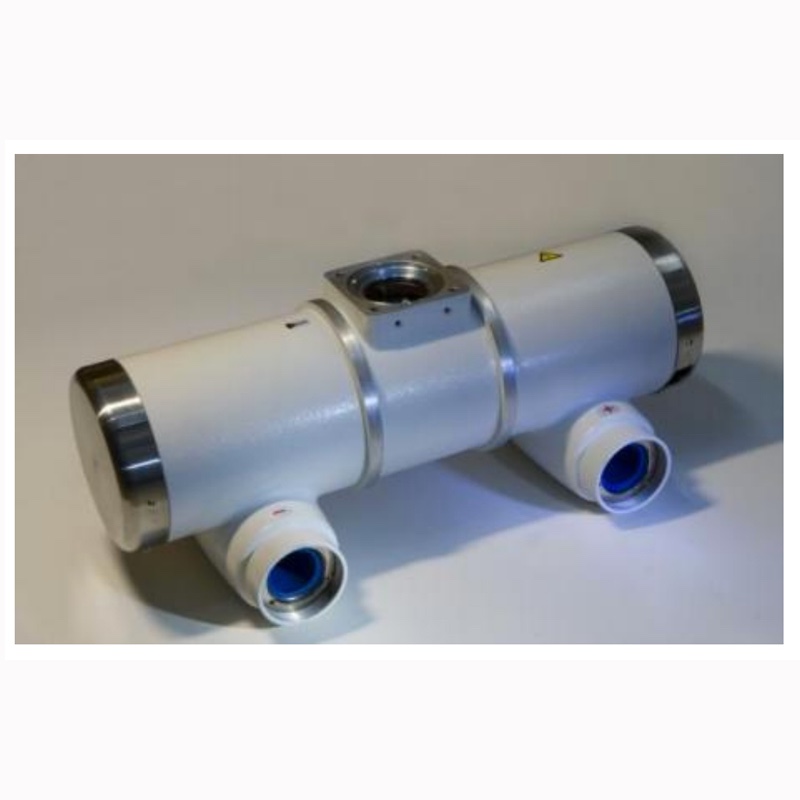

X-ray Tube Assembly

-Double focuses: small focal point 1.0mm/ large focus 2.0mm.Totally can achieve the balance between the best resolution radioofimages and loading power.
-High heat capacity: the heat capacity of tube is 140Khu whichcan achieve the stability and requirements of continuous exposureanand operation.
-Peak power: small focal point 20kw, large focus 40kwCan grealy promote the photography conditions to fit animal'svariety of body size and the range of body position. Also fulfill therequirements ofloading the special photography.

Flat Pannel Detector

-Comprehensive image production quality has reachedthe forefront level of the domestic industries. It has 139umfor pixel size, 3.7lp/mm for spatial resolution, 3072*3072for pixel matrix and millions of pixel imaging
- Large dynamic range (16-bit) and wider greylevel cantruely satisfy the exquisite reproduction of subtle densitydifferences in animal tissue
