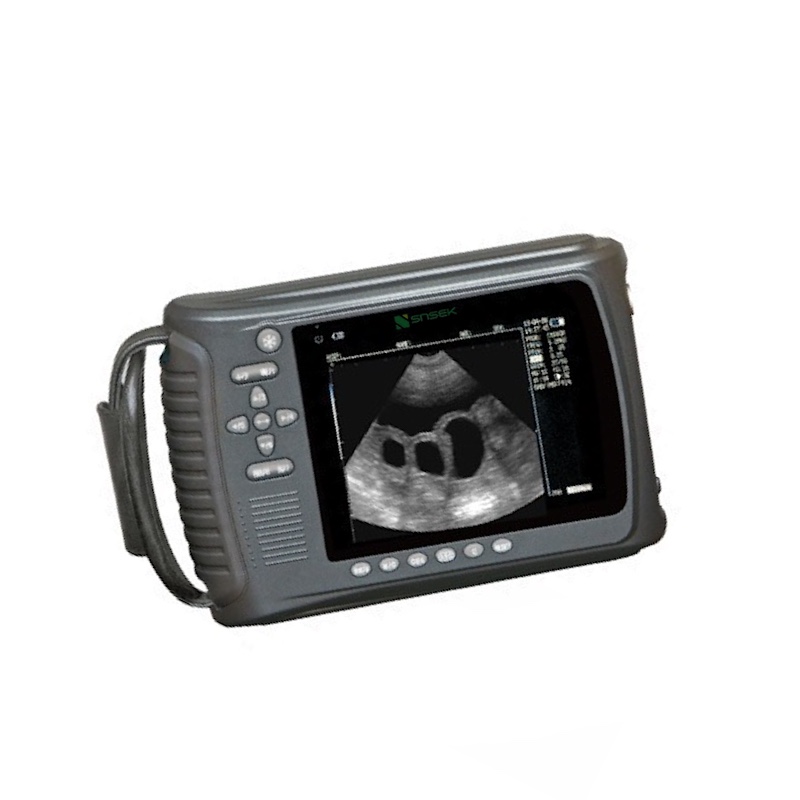

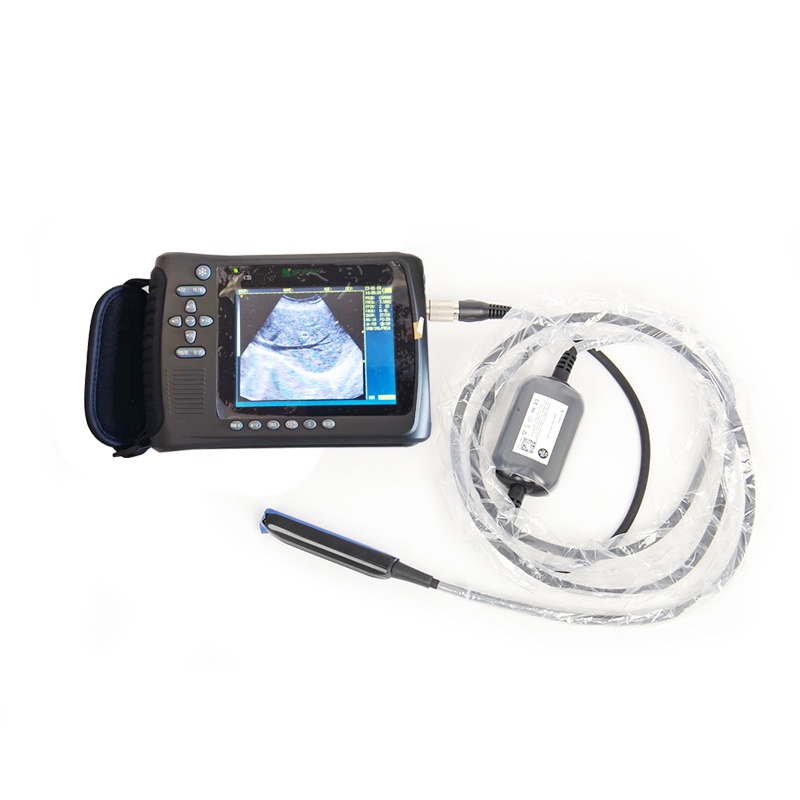

Snsek-HD3 Vet Basic Veterinary Ultrasound Scanner

Main Features:
-5' TFT-LCD , wide visual, high brightness, high contrast, image clear and exquisite.
-Hand-held design, smart and light, easy to carry, convenient for detection.
-OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
-64 frames permanent storage, 256 frames cine loop.
-Output: video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.
-Adopted AC and DC to supply power, lithium battery capacity 3500mAh which can make machine work more than 180minutes.

Technology Parameters

-Detect Depth(mm): ≥ 140
-Blind zonelmm): ≤3
-Monitor size: 5 inch
-Display mode: B,B+B,B+M,M.4B
-Image gray scale: 256
-Image storage: 64
-Cine loop: ≥400 frame
-Scan depth: 120mm-220mm
-Image flip: up/down, left/right
-Focus position: Adjustable
-Posture mark: 15
-Image process: Histogram, color encode, gama, image smoothProbe frequency: Adjustable ( 3 point each probe )
-Frame correction: Adjustable
-Measurement: distance, circumference, heart rate. EDD. area, volume, GA and etcNotation: date time, name, sex, age,  full screen words edit and etc.Output report: regular
-Output: VIDEO PALD,NTSC)
-Charging method: adapter, battery

-Adapter rating: 100-240V，50-60H, 70VA

-Battery: 3500mAh, continuous work: =3 hours

-Machine dimension: 230mm(L)x120mm(W)x38mm(H)Net weight: 700g

Standard Configuration

Optional

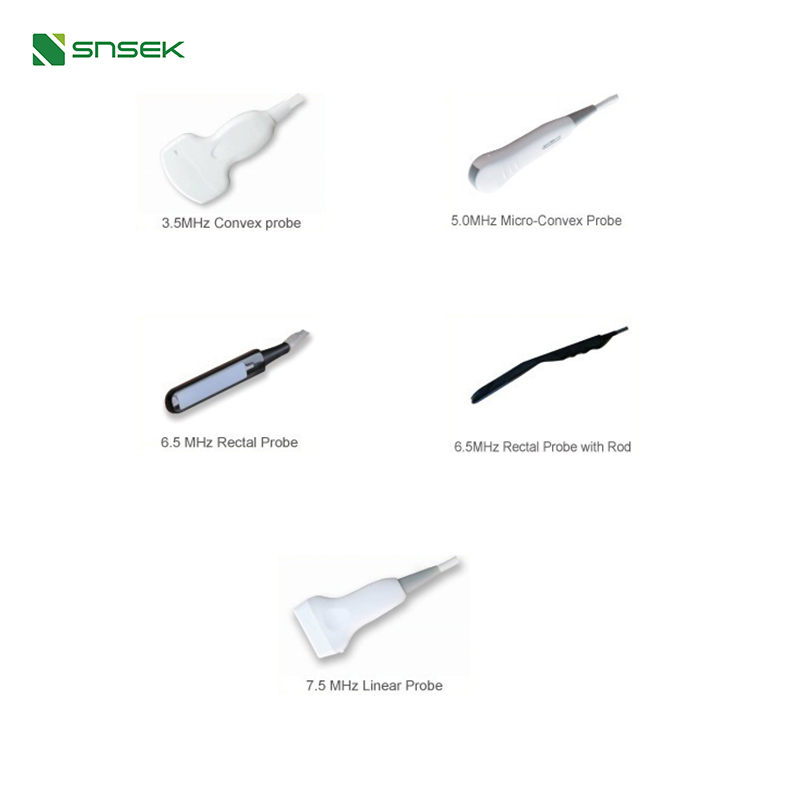

-5.0MHz Micro-convex Probe
-6.5MHz Rectal Probe
-6.5Mhz Rectal Probe with Rod
-7.5MHz Linear Probe
-Li-ion Battery
-Rod of Rectal Probe
-Car Charger
-Charging Adaptation Wire (containing power cord)
