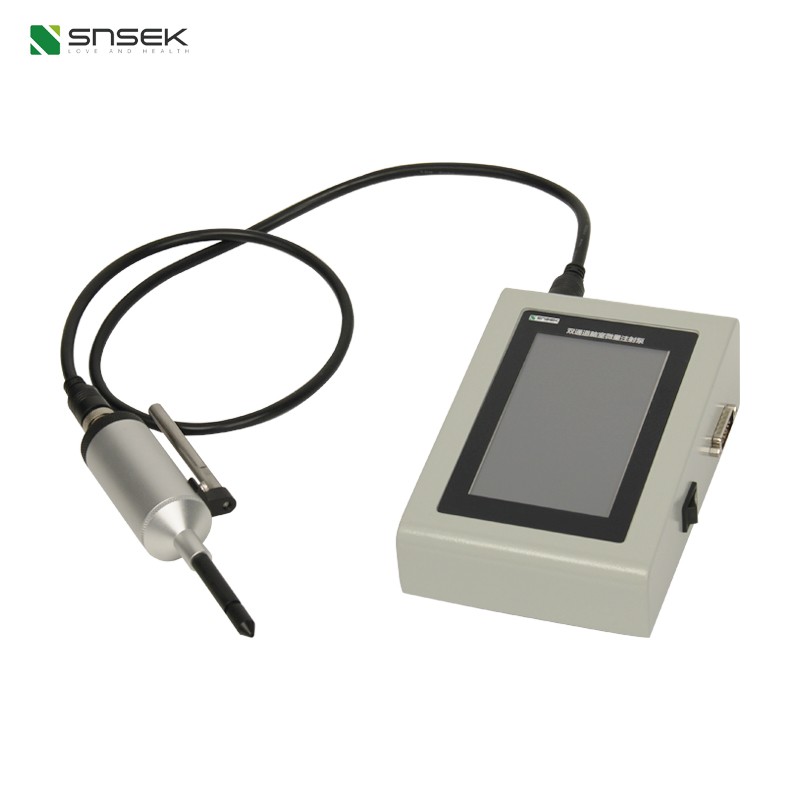

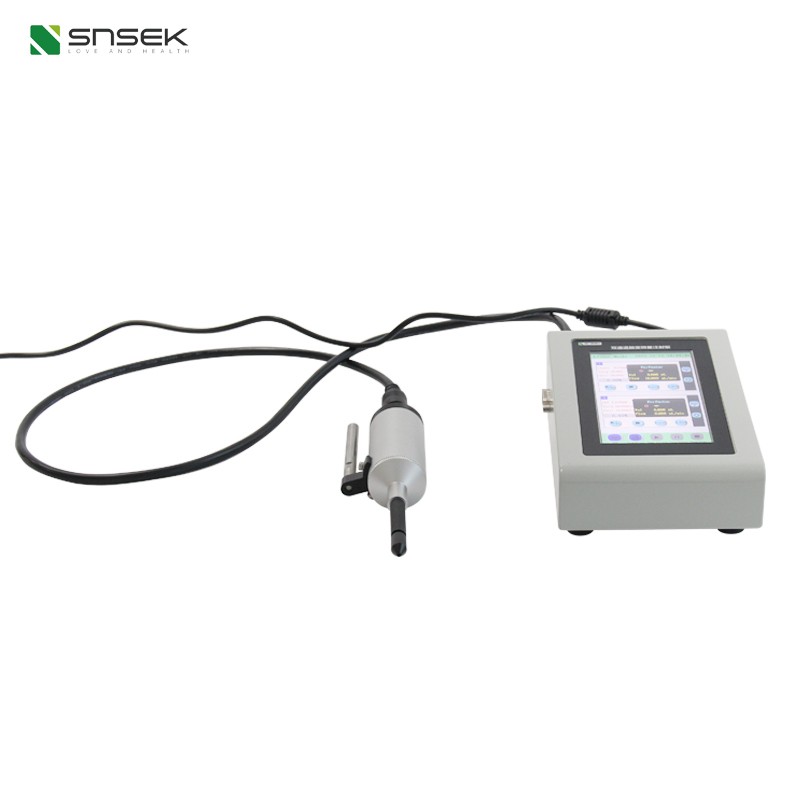

Snsek-SN-MSP-L Glass microelectrode syringe pump

Product ItemSnsek-SN-MSP-L Glass microelectrode syringe pump
CategoryBrain function modeling

Brand: Penncentury SNSEK

Model: Snsek-SN-MSP-L

The glass microelectrode injection pump is a high-precision, high-airtight, and high-stability injection pump that can perform precise, timed, and quantitative microinjection and aspiration on oocytes, animal larvae, protozoa, animal brains, eyeballs, etc. It can be used with a stereotaxic instrument to inject viruses or tracers into the brain, and can also be used for agricultural research such as pest control and plant insect control, including the injection or aspiration of specific substances on insect embryos and larvae.

Parameter	Specification
Display	5-inch LCD touchscreen (CN/EN one-click switch)
Stroke	25 mm
Capillary Size	OD: 0.045" (1.14 mm) / ID: 0.021" (0.53 mm)
Flow Rate Range	0.295 nL ~ 12.763 μL/min
Adjustment Resolution	7.9 μm/min
Stroke Resolution	0.165 μm
Rated Linear Thrust	20 N
Control Method	Touchscreen setup
Control Accuracy	≤0.5% error (at ≥30% full stroke)
External Control	Start/Stop, Fast Forward/Reverse
Communication	RS485
Power Supply	AC220V±10%, 50/60 Hz
Power Consumption	<10 W
Operating Environment	0–40°C, <80% RH
Dimensions	180×46×78 mm (L×W×H)
