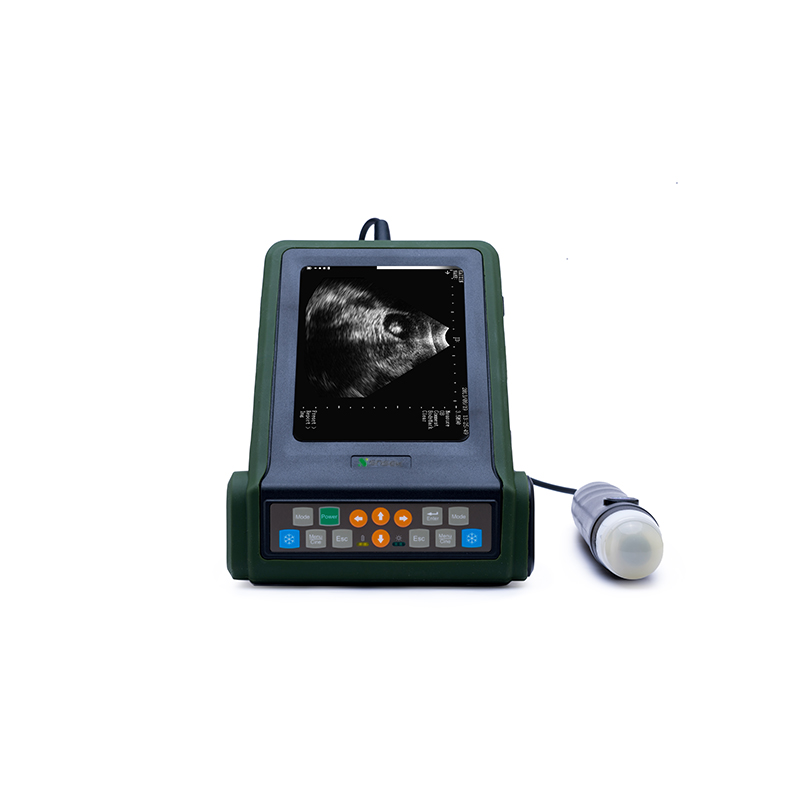

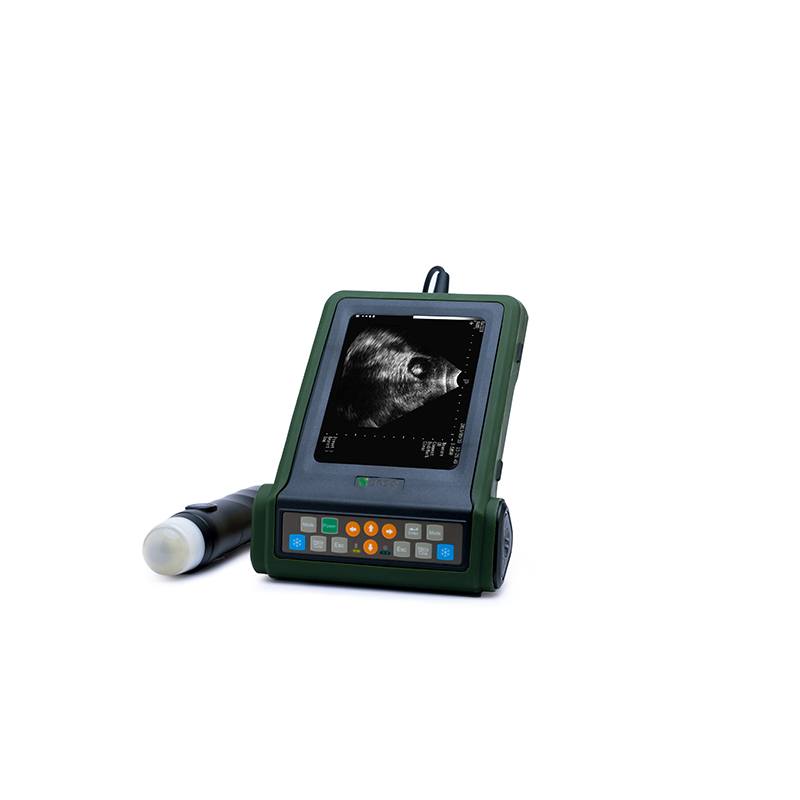

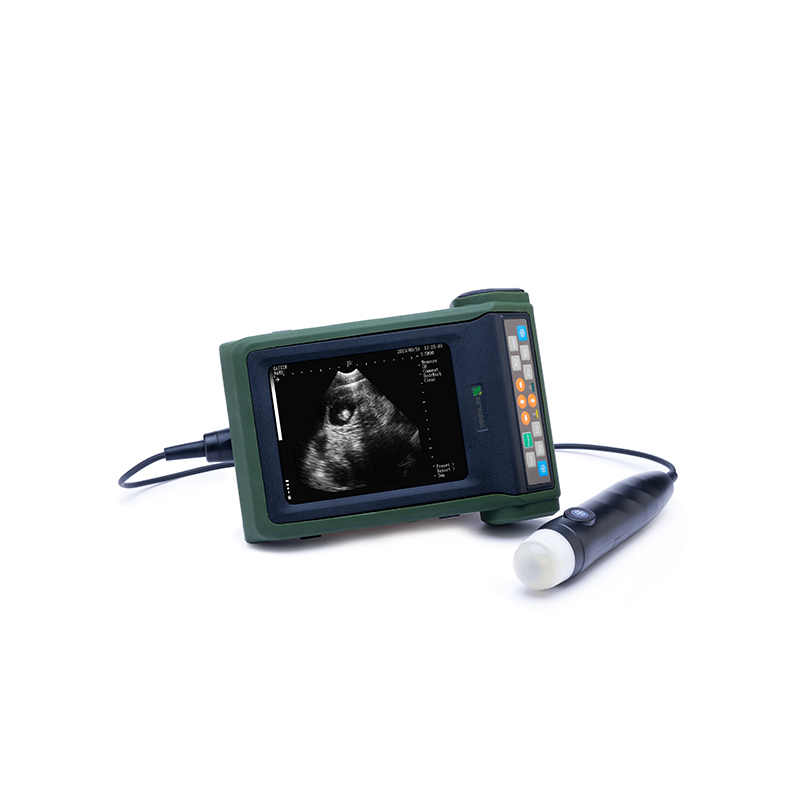

Snsek-HD4 Vet Handheld Veterinary Ultrasound Scanner For Pig - Image 1

Snsek-HD4 Vet Handheld Veterinary Ultrasound Scanner For Pig

Product ItemSnsek-HD4 Vet
CategoryUltrasounds
B modeB mode
1 Probe connectors1 Probe connectors
5.7 inches LED5.7 inches LED
portableportable

Main Features:

-Economic price.
-1.1kg weight, Smart and light.
- 5.7" High resolution color LED.
-Have soft rubber coat, splash-proof, dust-proof.
- sunshine cover, suitable for use in outdoor strong sunshine.
- High-capacity lithium Battery ,more than 6 hours work.
- Available for left/right hand alternative use, eliminating operate fatigue.
- Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect.

Technical Specification:

- Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
-5.7 "high resolution color LED display, high brightness, high contrast, wide visual Angle, suitable for outdoor
- Language: Chinese/English switchable.
- Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
- Display mode：B、2B、4B 、B/M、M, total 5 kinds.
- Gain range:0~127dB
- Intelligent TGC control. Near-field：0～-31dB；Far-field：0～31dB
- Dynamic range: 27~90dB
- Gray : 256
- Magnification：0.8、1.0、1.2、1.6、2.0, total five kinds；
- Frequency conversion：2 kinds
- Frame correlation：0、1、2、3 total 4 kinds.
-Image post-process adjustment：0、1、2、3,total 4 kinds.
- Local zoom.
- 4 grades depth adjustment, maximum display depth is 200mm.
- Image horizontal/ vertical reverse, left/right reverse.
- Pseudo-color: 8 kinds (incl. B/W).
- Permanent image storage: 100 frames.
- USB disk storage function
- Puncture guiding function,（ 2 guiding lines, angel and position adjustable）
- Equipped with lithotripsy software, realize real-time positioning measurement.
- Energy saving function.
- Character brightness: choose from 160、192、224、255 for brightness.
- Keyboard tone：2 kinds（open、close）；
- Dual-mode TV output：ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
- Net weight: 1.1KG
- Main unit size: 212mm*154mm*58mm(length x width x height)

Image storage:

- Permanent image storage: 100 frames.
- USB port support one-key storage image to USB.

Measurement and analysis:

- General measurement：distance、Perimeter, area (trace method, ellipse method), volume, etc.
- Cardiac measurement: depth, slope, heart rate, time.
- OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
- OB report function

Power supply:

- Dual power supply. Power：AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.
- Battery: one pc of high-capacity lithium Battery( 5200MAh) ,more than 6 hours work.

Standard configuration：

-Main unit: 1 pc
-3.5MHz waterproof mechanical sector probe : 1 pc.
- Power adapter: 1 pc
-Internal battery : 1 pc
- The leather Case: 1 unit
- Green soft rubber coat: 1 pc
- Sunshine cover : 1 unit (A,B,C three sections adjustable)
- Black plastic suitcase : 1 pc
- Base Charger, belt, probe socket spatula: 1 pc for each.
