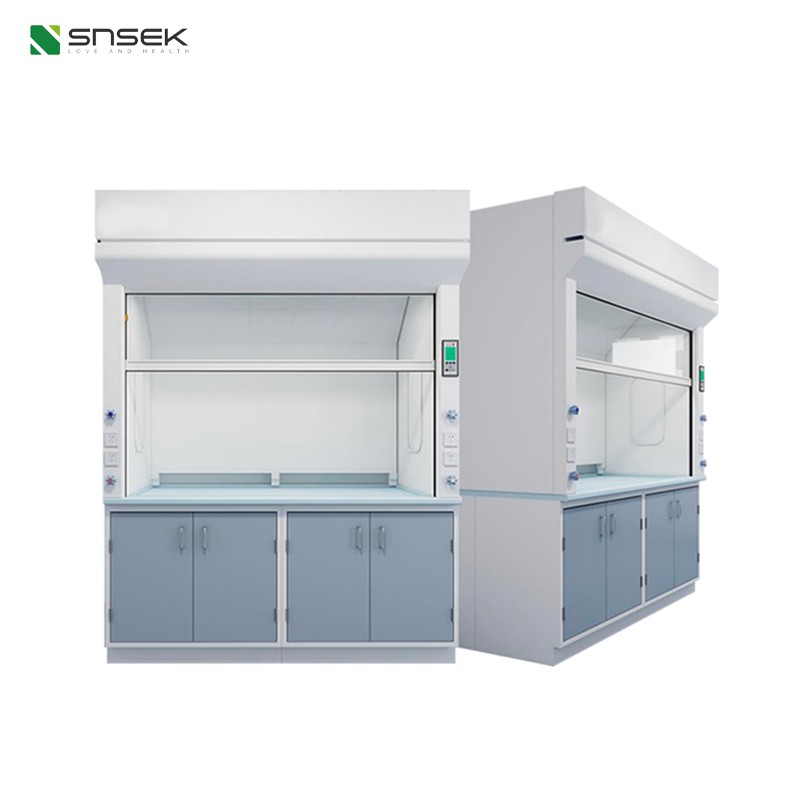

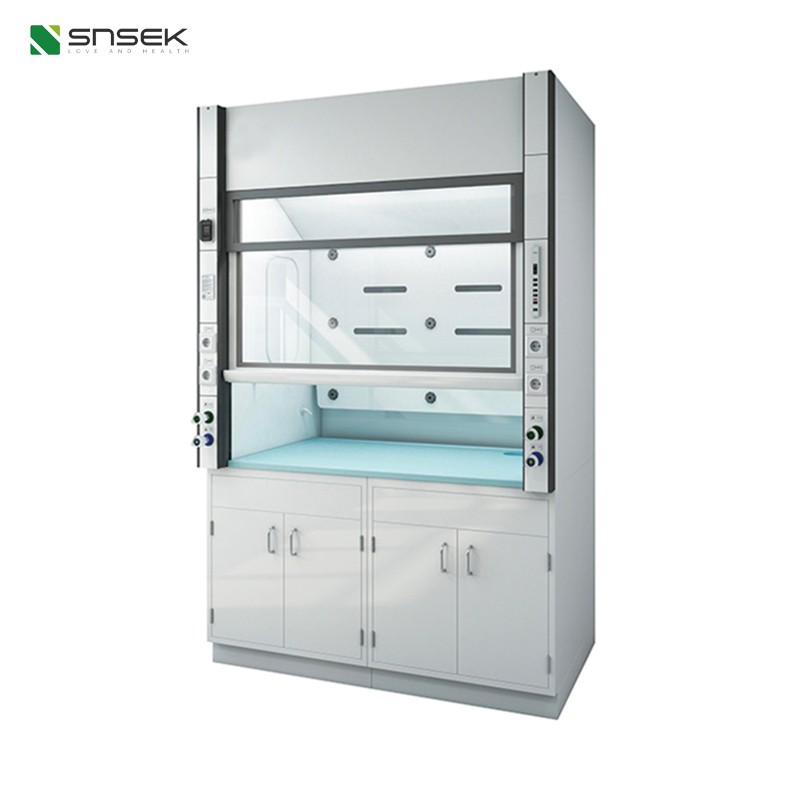

Snsek-BFH100 Laboratory Benchtop Fume Hood

Parameter

Description

Specifications (L*W*H)

1200 / 1500 / 1800 × 850 × 2350 mm / Customizable

Material

Main frame: 1.0 mm or 1.2 mm thick Angang cold-rolled steel plate

Worktop

Optional: Phenolic resin board, ceramic board, marble, epoxy resin, stainless steel

Processing Technology

Laser full-welding process; surface treated with fully automatic epoxy spray coating and high-temperature curing

Upper Cabinet

    Viewing Window

Aluminum alloy frame, embedded 6 mm tempered glass; custom-molded window handle

    Inner Lining

Top panel, back panel, and baffle: 5 mm white Trespa (compact laminate); PP base

    Pulley

Aluminum alloy pulley, 8M synchronous belt drive

    Lighting

Three-proof (dustproof, waterproof, anti-corrosion) purified LED tube

    Other Accessories

32A leakage protection circuit breaker, 10A 5-hole socket, water/gas valve, control panel

Lower Cabinet

    Handle

Optional: 128 mm 304 stainless steel C-type handle, concealed integrated handle, 2.5 mm hidden aluminum alloy handle

    Hinge

Optional: 2 mm 304 stainless steel hinge, concealed damping hinge

    Leveling Feet

Stamped from 2.5 mm thick steel plate, paired with M10 hexagonal galvanized screw rod

Color

Customizable according to customer requirements
