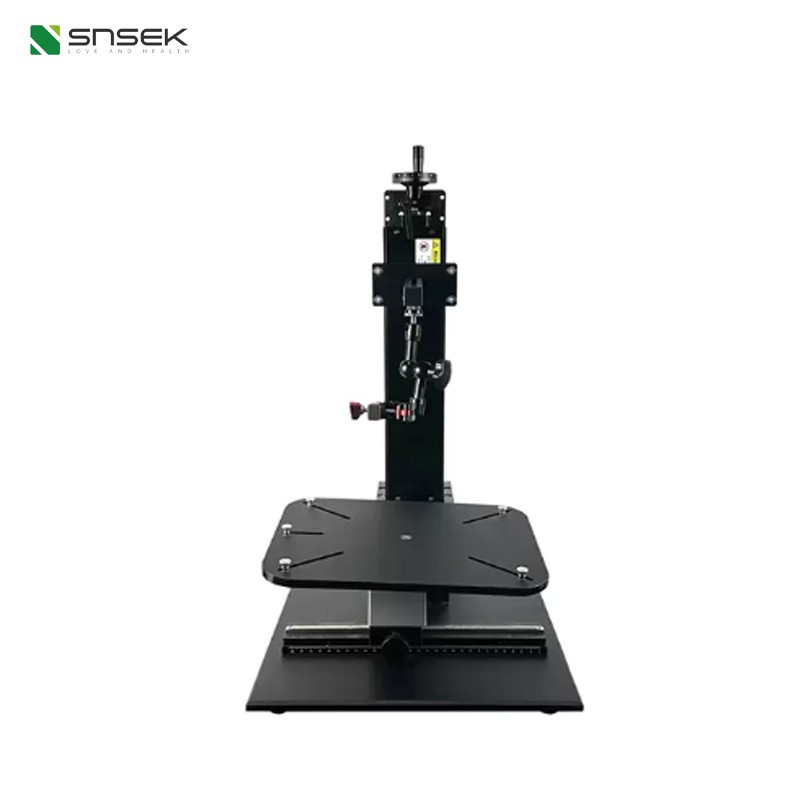

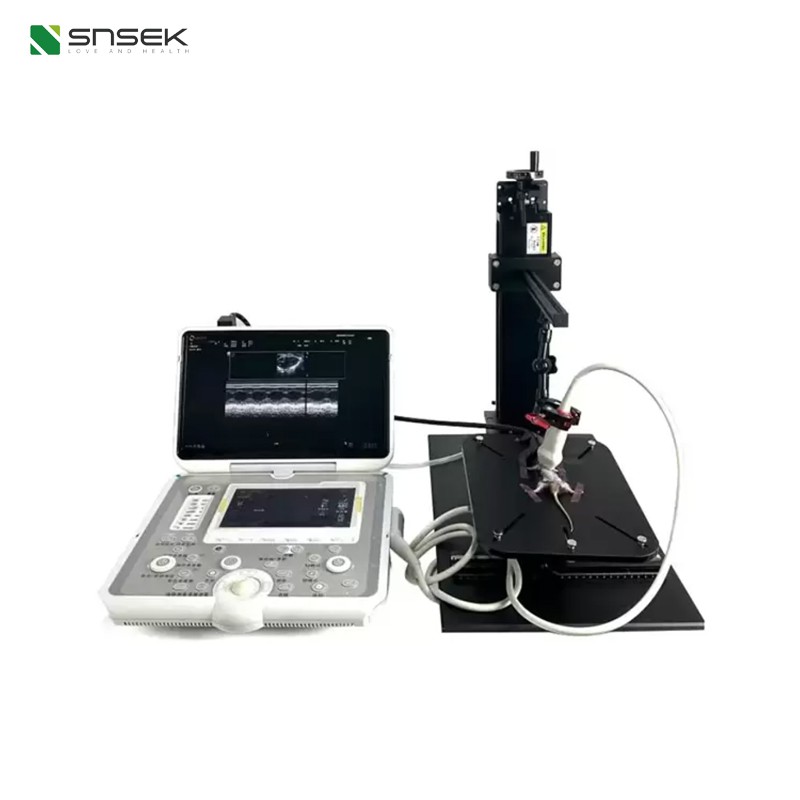

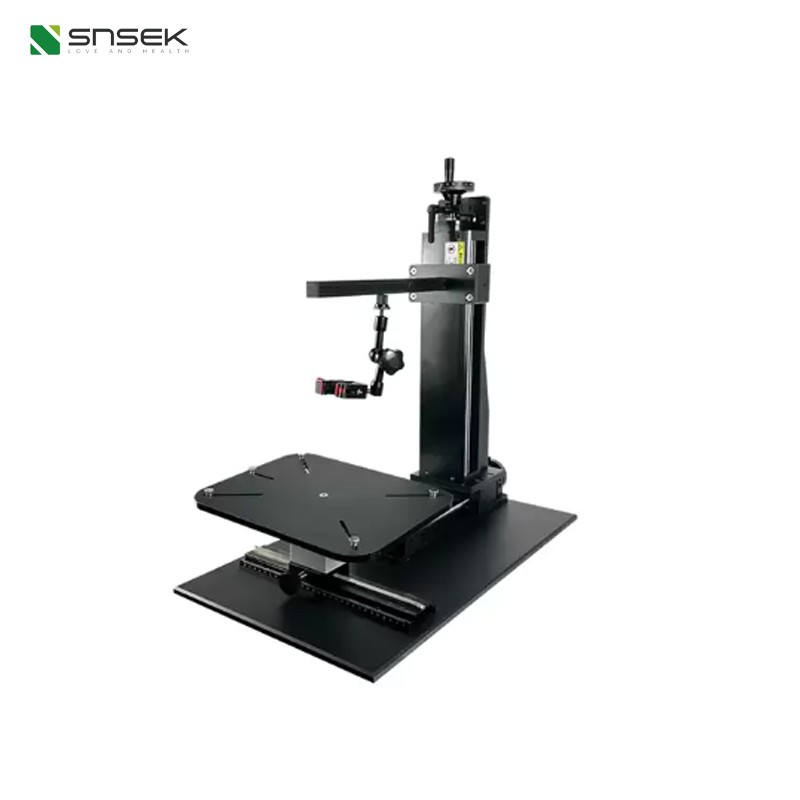

SNSEK-AUMP01 Lab Mice and Rat Small Animal Ultrasound Measurement Platform

Item

Technical Parameter

Displacement Platform Dimensions

60 × 34 × 60 cm

Linear Guide Rail Slide

6061 aviation-grade aluminum (corrosion & oxidation resistant, hardness ≥ HRC55), ball screw design, horizontal displacement 20 cm, vertical displacement 30 cm, roller accuracy 0.025 mm

Guide Rail Load & Locking

Vertical load 15 kg, horizontal load 30 kg, supports position locking for precise positioning

Operating Platform & Clamping

Platform 30 × 23 cm (3D steel ball rolling adjustment); aluminum alloy crab claw clamp with adjustable angle, compatible with most ultrasound probes

X-Axis Dovetail Groove Slide

Total length 300 mm (range 280 mm), accuracy 1 mm, parallelism 0.15 mm
