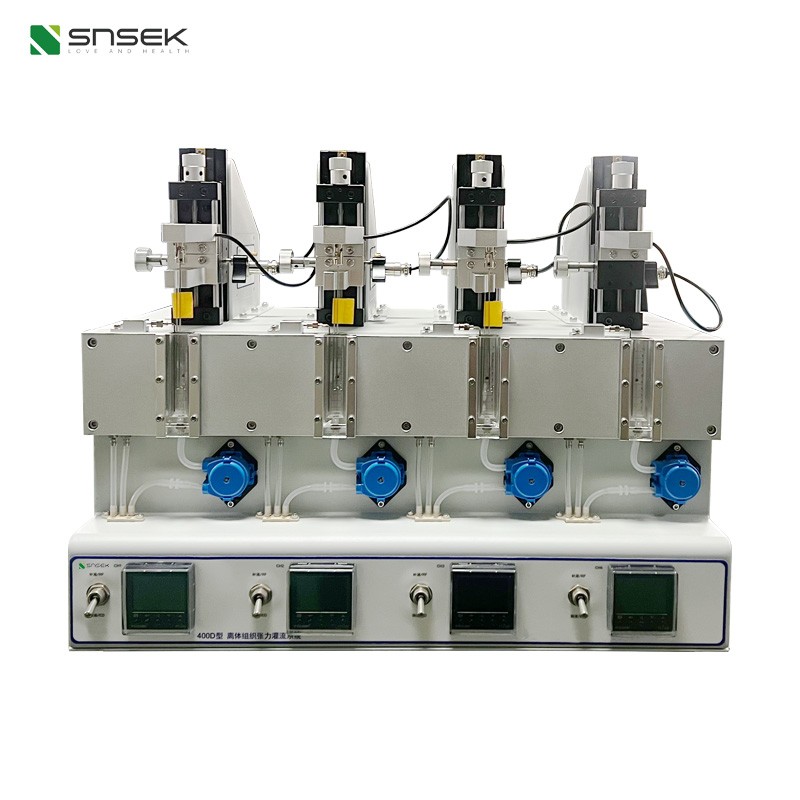

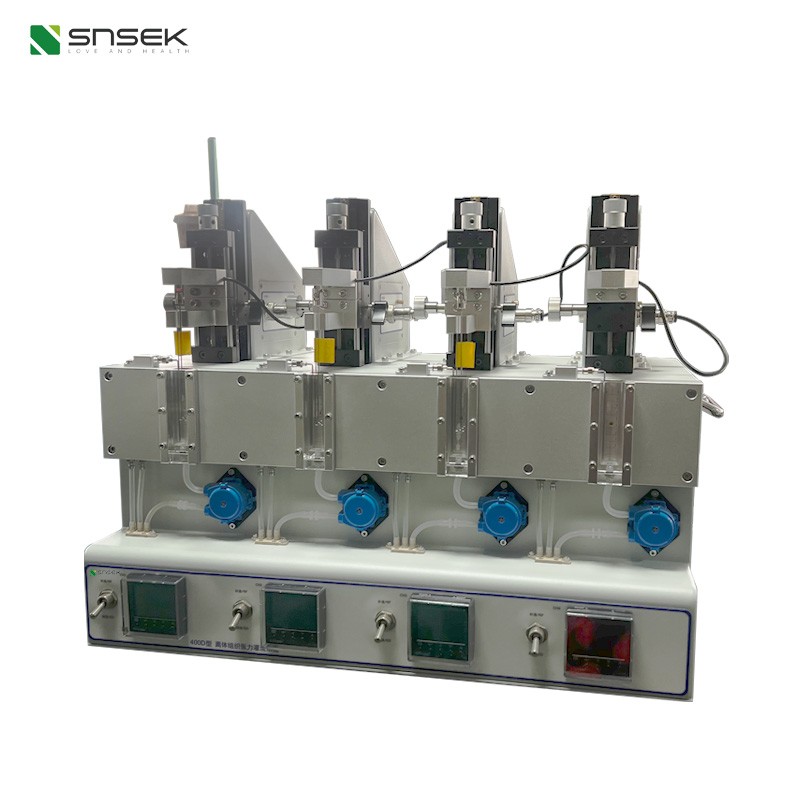

Snsek-SMMS400D Isolated Tissue Tension Perfusion System
- Product Item : Snsek-SMMS400D Isolated Tissue Tension Perfusion S
- Category： Cardiovascular
Brand: Penncentury SNSEK
Model: Snsek-SMMS400D
Fields of Application
This system is primarily used for studying the physiological and pharmacological properties of various smooth muscle and skeletal muscle tissue samples, such as uterine muscle, vascular rings, vascular strips, muscles, muscle strips, trachea, and intestines. Tissue samples are immersed in a physiological buffer solution at 37°C to maintain their biological activity. Sensors measure the magnitude and changes in contraction and relaxation tension of the tissue samples. The base tank is designed with electrical stimulation ports for electrical stimulation of the specimens. Data is then collected and analyzed using a recording system to plot tension change curves. This system employs independent electrothermal temperature control for each channel, eliminating the need for an external circulating water bath. It boasts advantages such as a compact structure, simple operation, easy cleaning, and a compact appearance that saves experimental space.
|
Parameter |
Specification |
|
Display Method |
LCD 4-channel independent display and setting |
|
Channel Quantity |
4-channel bath with independent temperature control |
|
Specimen Hook Adjustment |
Bidirectional scale, range ±40mm |
|
Tension Mechanism Adjustment |
Overall bidirectional scale, range ±80mm |
|
Applicable Specimen Size |
1~35mm specimens |
|
Bath Internal Dimensions |
15mm (L) × 12mm (W) × 65mm (D) |
|
Bath Capacity |
12 ml |
|
Nutrient Solution Supply |
Automatic fluid replacement, flow rate 70ml/min |
|
Bath Waste Suction |
Automatic, flow rate 70ml/min |
|
Bath Gas Inlet |
Needle valve, independent control, compatible with external oxygen |
|
Tension Range |
100g |
|
Tension Accuracy |
0.1mN or 0.01g |
|
Temperature Range |
Ambient temperature - 45℃ |
|
Temperature Accuracy |
0.1℃ |
|
Temperature Probe |
Built-in |
|
Output Display |
Tension (g or mN) (interface customizable) |
|
Analog Output |
3mV/V (customizable) |
|
Voltage |
100-240V |
|
Operating Environment Temp |
15-30℃ |
|
Device Dimensions (L×W×H) |
500×300×400mm |
Main Features
- Electric Heating: DC heating plate with PID control; no external water bath, space-saving, anti-scale.
- Independent temperature control: Individual temp settings per bath; unused channels switchable off.
- Removable Baths: Pipeline-free, embedded card holder for easy removal.
- Micro-Operation: Micro-adjuster for fine-tuning specimen initial tension.
- Horizontal Bath: Supports observation, suspension/pre-adjustment; operable inside/outside.
- Auto Liquid Addition: Micro peristaltic pump for nutrient solution, volume adjustable via scale.
- Auto Drainage: Micro peristaltic pump discharges waste to collection bottle.
- Stimulation Electrodes: Pre-embedded gold-plated electrodes for external electrical stimulation.
- Gas Supply: Independent inlets with micro needle valve for airflow control; compatible with various needles.
