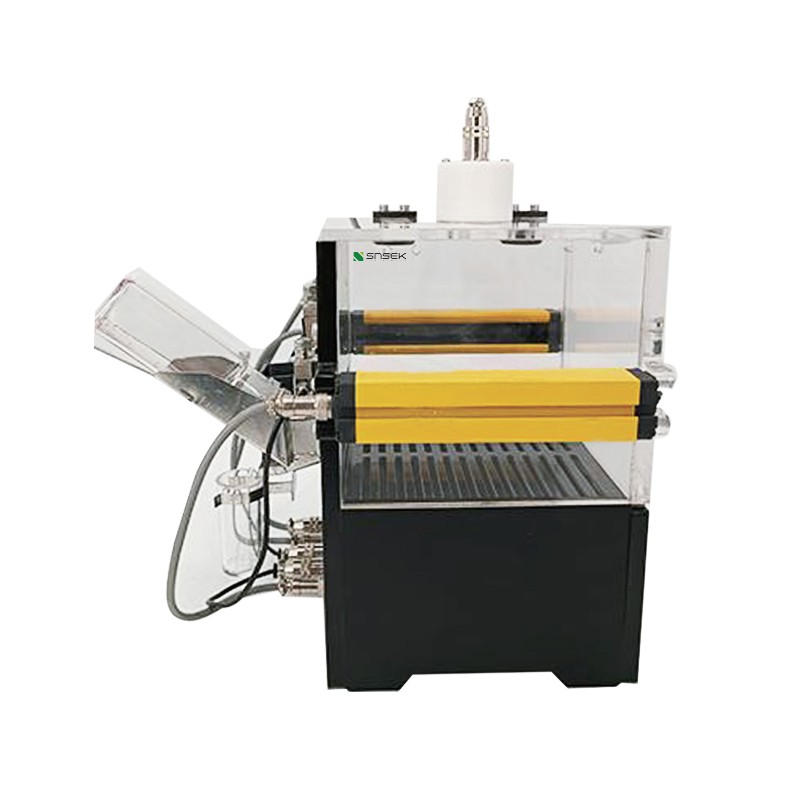

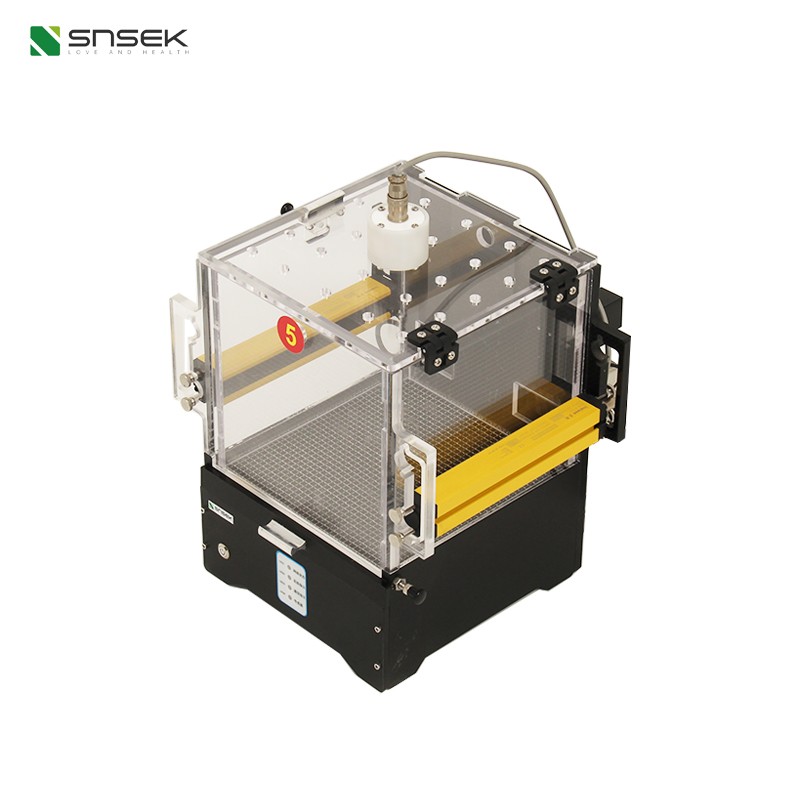

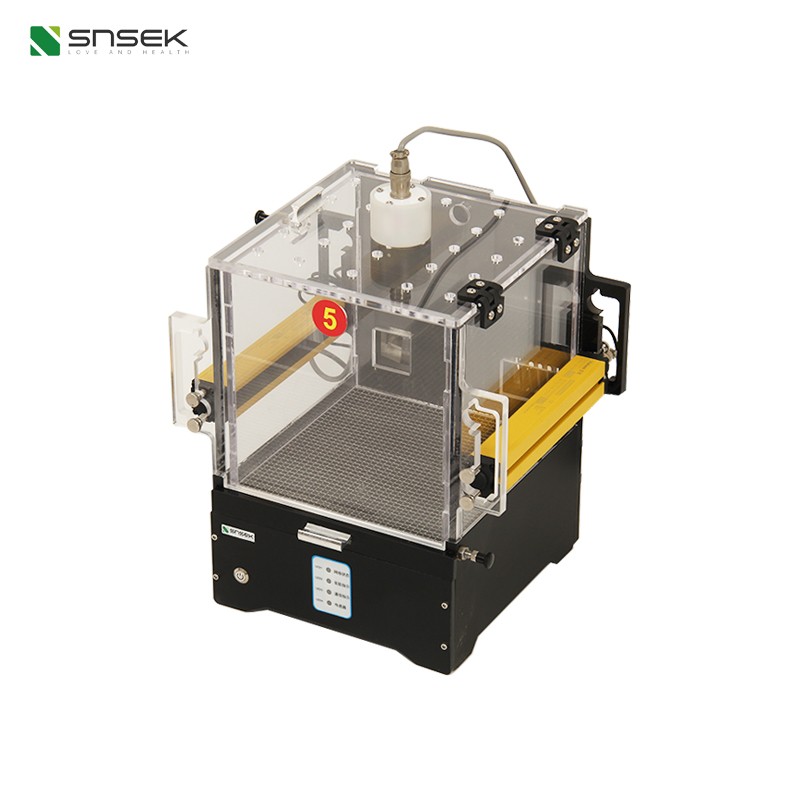

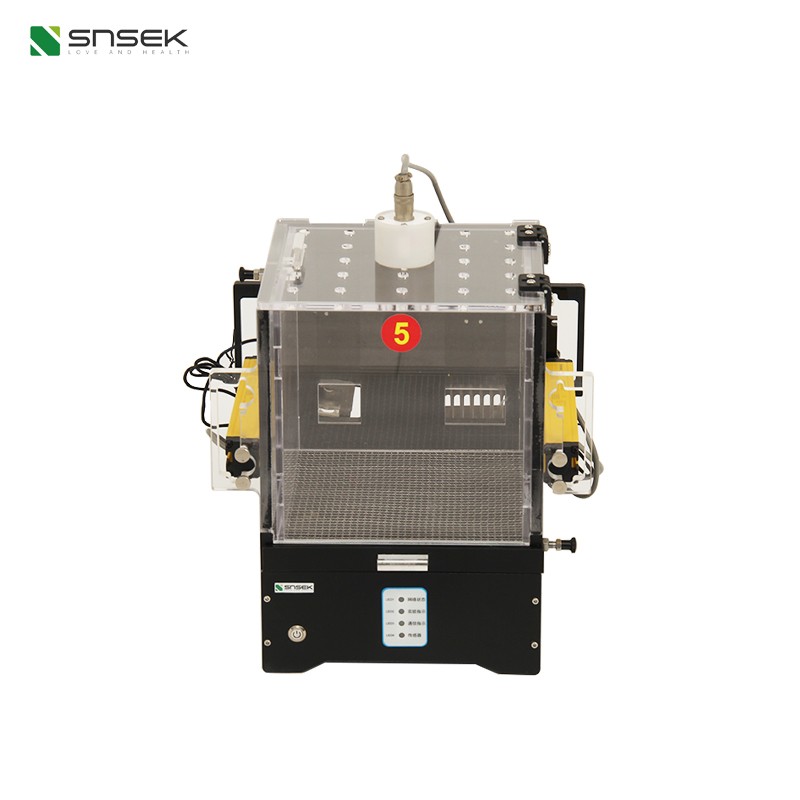

Snsek-SM-FWIM Food and water intake monitoring system for mice and rats

Parameter

Specification

External Dimensions (Activity Cage)

350×350×350mm

Activity Cage Material

Aluminum alloy frame + transparent acrylic

Bottom Feature

Equipped with excrement tray

Support Frame Material

Stainless steel

Water Bottle Capacity

80ml

Food Tray Capacity

100g

Activity Detection Method

XY infrared thermal sensor (8×8)

Number of Channels

1–48 channels (optional)

Standing Detection Method

5mm infrared tube pair (height adjustable)

Weight Sensor Range

1000g

Food Detection Precision

0.01g

Water Consumption Precision

0.01ml

Software Data Outputs

Feeding consumption, water consumption, feeding frequency/duration, water-drinking frequency/duration, standing frequency, activity level; Exportable to Excel

Chart Functions

Food consumption waveform, water consumption waveform, activity histogram, activity trajectory diagram; Exportable/savable as JPG
