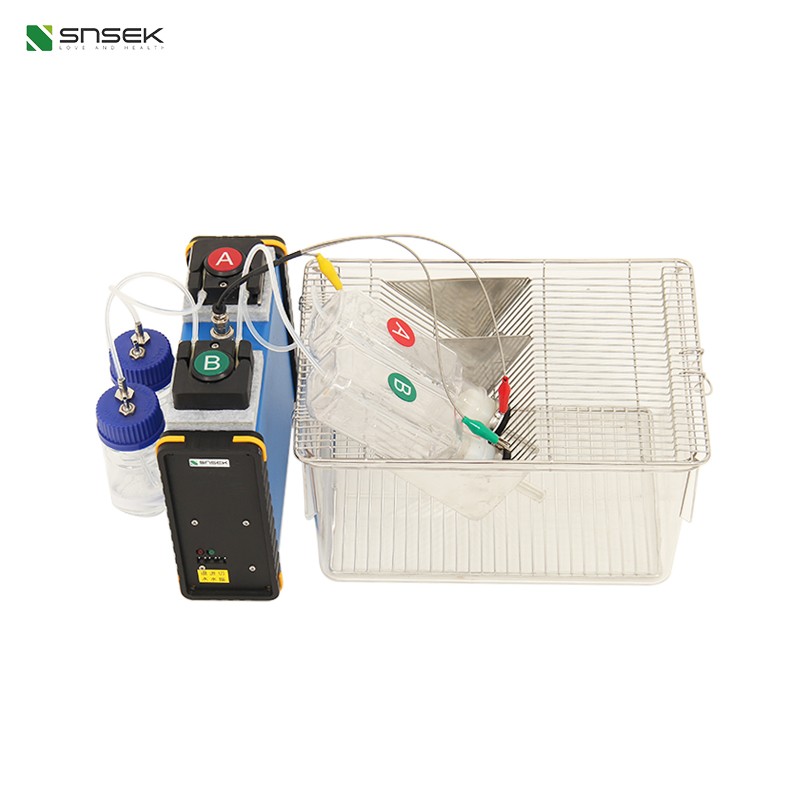

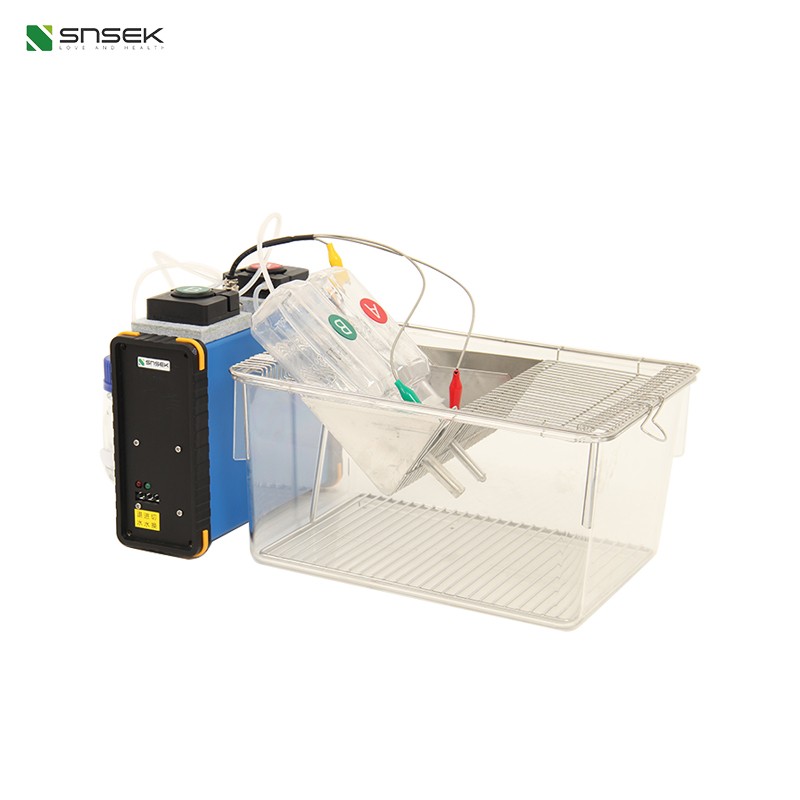

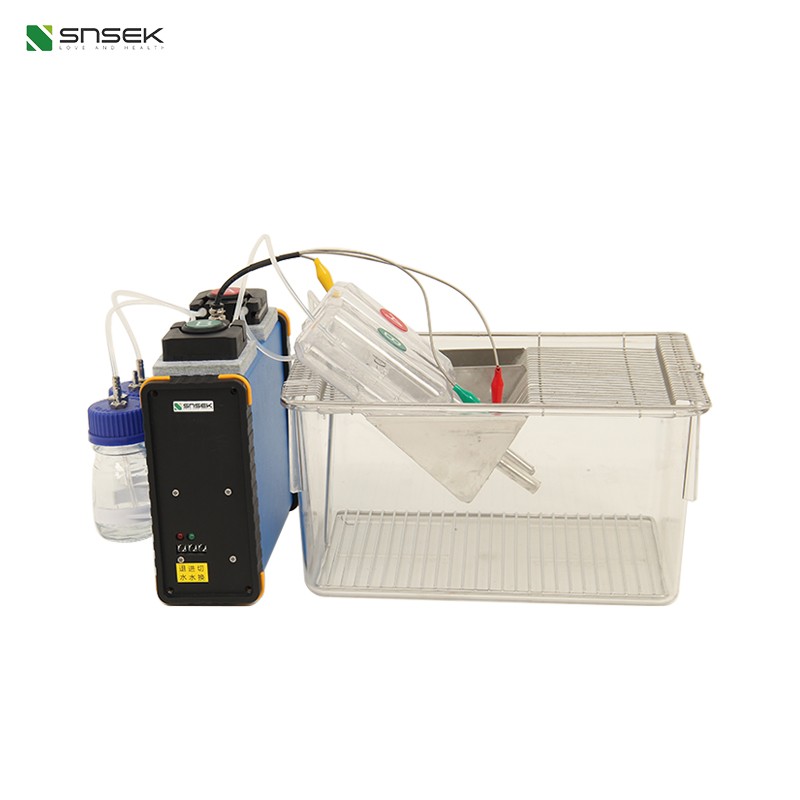

Snsek-SM-SWPS Sugar water preference system in mice and rats

Parameter

Specification

External Dimensions (Activity Cage)

350×350×350mm

Activity Cage Material

Aluminum alloy frame + transparent acrylic

Bottom Feature

Equipped with excrement tray

Support Frame Material

Stainless steel

Water Bottle Capacity

A: 80ml; B: 80ml

Activity Detection Method

XY infrared thermal sensor (8×8)

Number of Channels

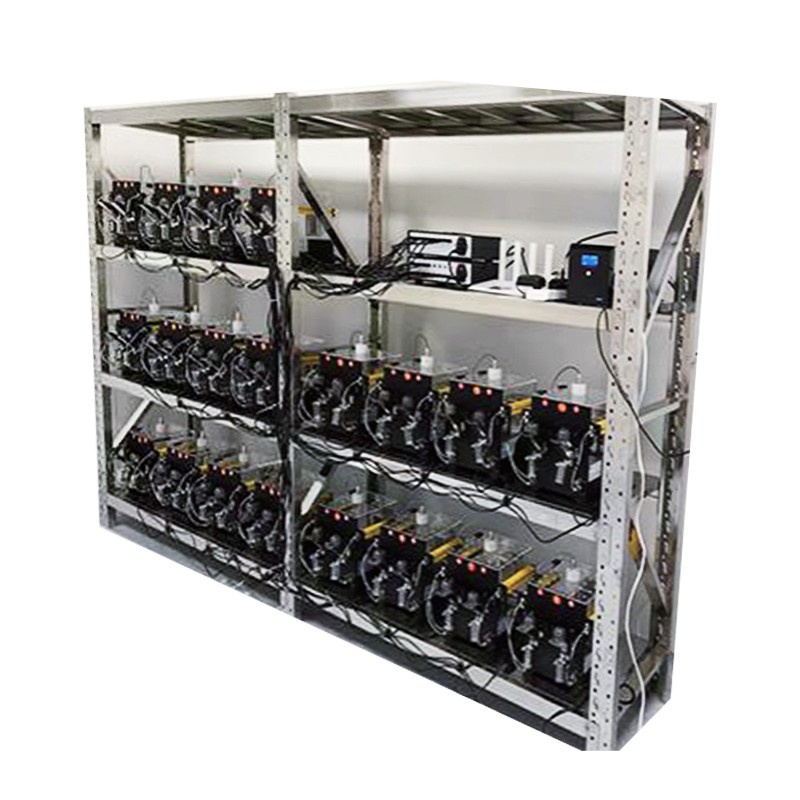

1–48 channels (optional)

Standing Detection Method

5mm infrared tube pair (height adjustable)

Weight Sensor Range

1000g

Water Consumption Precision (A/B Trough)

0.01ml

Software Data Outputs

A trough consumption, B trough consumption, A trough frequency/duration, B trough frequency/duration, standing frequency, activity level; Exportable to Excel

Chart Functions

Food consumption waveform, water consumption waveform, activity histogram, activity trajectory diagram; Exportable/savable as JPG
